The composition of core drilling rig

Core drilling rigs are essential tools for a wide range of applications, from mining and oil exploration to construction and environmental investigation. These machines are designed to extract cylindrical samples of rock or soil from deep underground, providing valuable information about the composition, structure, and properties of the earth’s subsurface. In this article, we will explore the composition of a typical core drilling rig and the role of each component in the drilling process.

Drill Bit: The drill bit is the cutting tool that actually penetrates the ground and extracts the core sample. It is typically made of industrial-grade diamonds or other super-hard materials that can withstand the extreme pressures and temperatures encountered during drilling. The shape and size of the drill bit can vary depending on the type of material being drilled, the desired core diameter, and the drilling method (e.g. rotary or percussion).

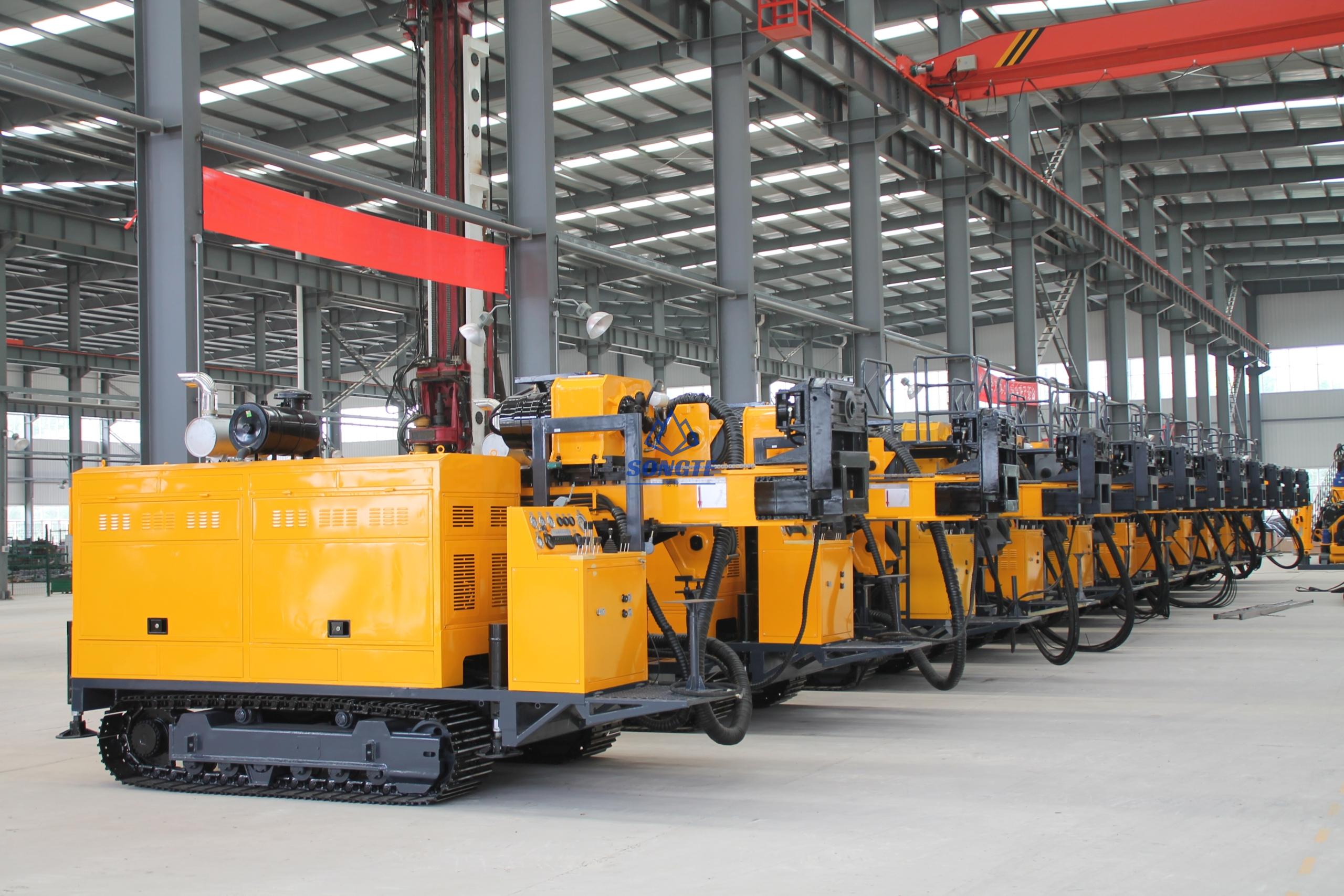

SCF-4 Full Hydraulic Diamond Core Drilling Equipment 1000m Wireline Coring

Drill Rods: Drill rods are the long, hollow tubes that connect the drill bit to the surface. They are typically made of steel or other high-strength materials and come in various lengths and diameters. Drill rods are screwed together in sections, with each section added as the drill penetrates deeper into the ground. The rods must be strong enough to resist bending and buckling under the weight of the drill bit and the friction of the surrounding rock or soil.

Power Source: Core drilling rigs require a significant amount of power to operate, particularly when drilling through hard rock formations. The power source can be an electric motor, a hydraulic system, or a diesel engine, depending on the size and type of rig. The power source drives the drill bit and the feed mechanism, which controls the downward force and speed of the drill.

Feed Mechanism: The feed mechanism is responsible for applying the necessary downward force and controlling the speed of the drill. It consists of a hydraulic cylinder or other mechanism that pushes the drill bit downward while also providing enough resistance to prevent the drill from bouncing or skipping. The feed mechanism is critical for maintaining a consistent drilling speed and preventing damage to the drill bit.

Water Supply: Water is essential for cooling the drill bit and flushing out the drilled material. Core drilling rigs typically have a water supply system that delivers a constant stream of water to the drill bit. The water also helps to lubricate the drill bit and reduce friction, which can prolong the life of the bit.

Hoist System: Once the core sample has been extracted, it must be lifted to the surface for analysis. The hoist system consists of a winch or other lifting mechanism that raises the drill rods and the core sample to the surface. The hoist system must be powerful enough to lift the weight of the drill rods and the core sample, which can be several hundred meters in length.

In conclusion, core drilling rigs are complex machines that require a range of components to work together seamlessly. The drill bit, drill rods, power source, feed mechanism, water supply, and hoist system all play critical roles in the drilling process, and each component must be designed and engineered to withstand the extreme pressures and temperatures encountered during drilling. By understanding the composition of core drilling rigs, we can gain a greater appreciation for the engineering behind these essential tools and the important role they play in a range of industries.

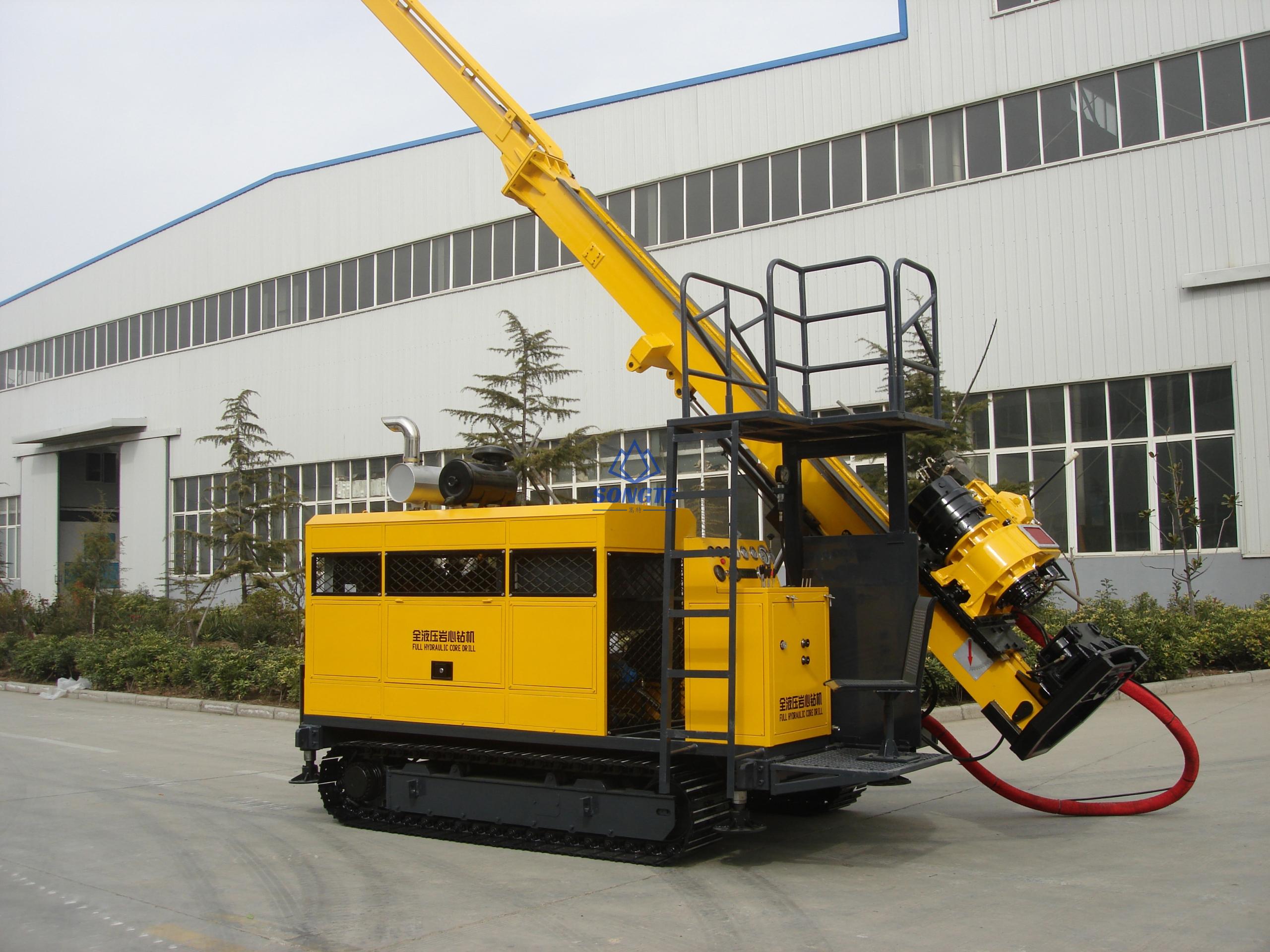

SCF-4 Full Hydraulic Diamond Core Drilling Equipment 1000m Wireline Coring
