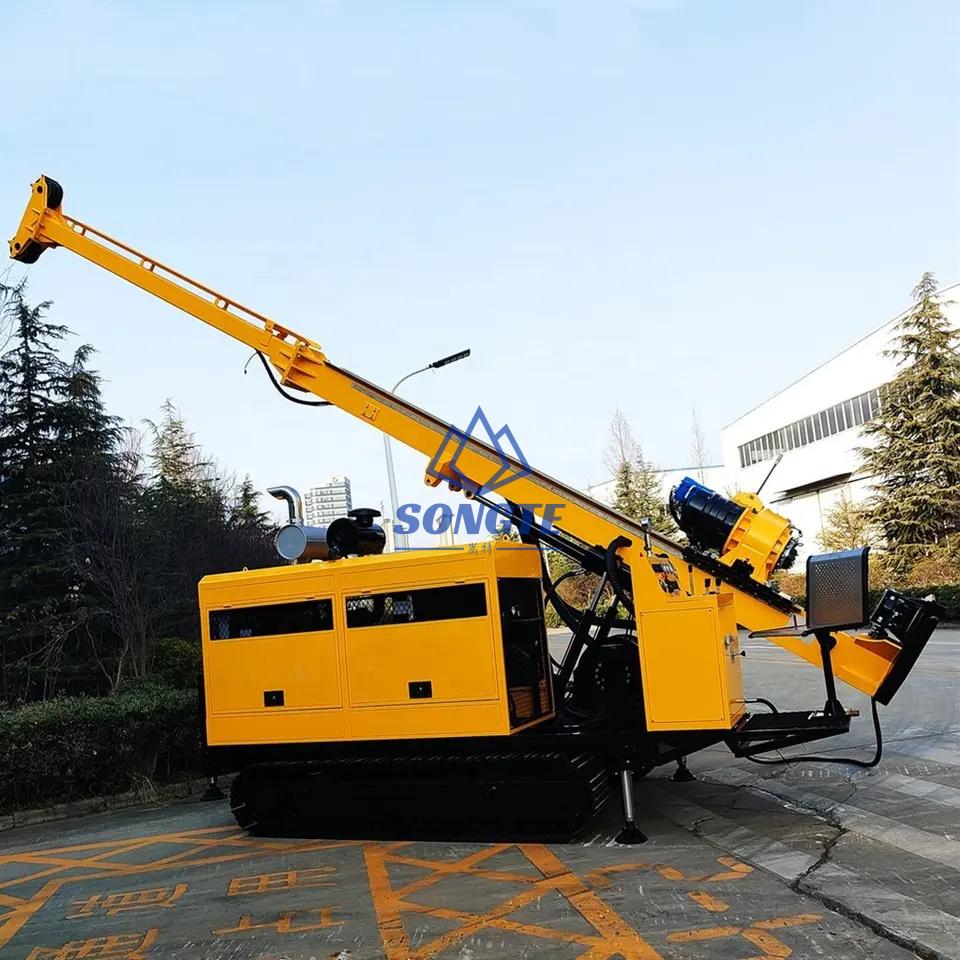

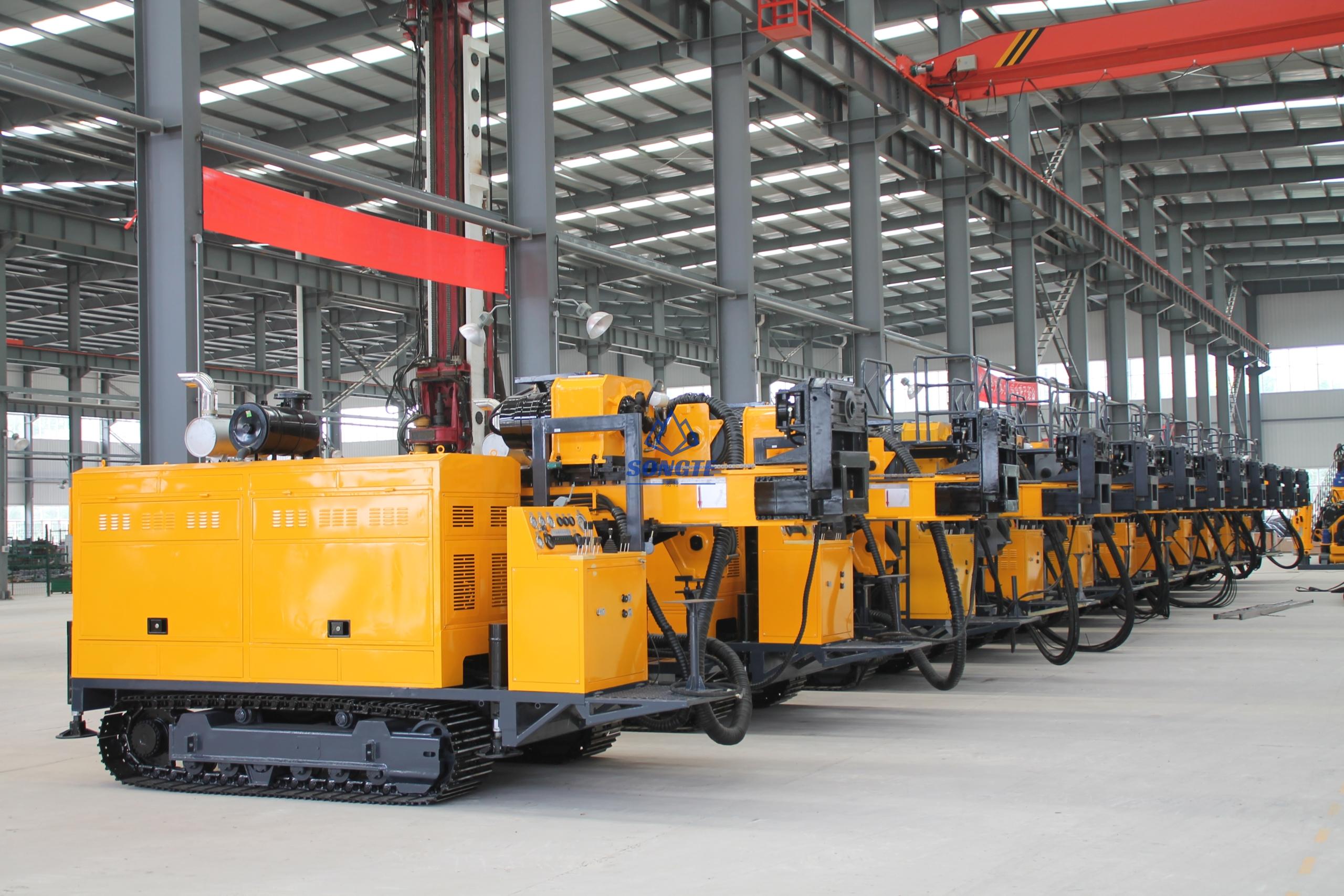

SCF-4 Full Hydraulic Diamond Core Drilling Equipment 1000m Wireline Coring
Full Hydraulic Diamond Core Drilling Equipment Introduction:
The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world.
Hydraulic Crawler Type Core Drilling Equipment Application:
It could be applied in exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and for other industries.

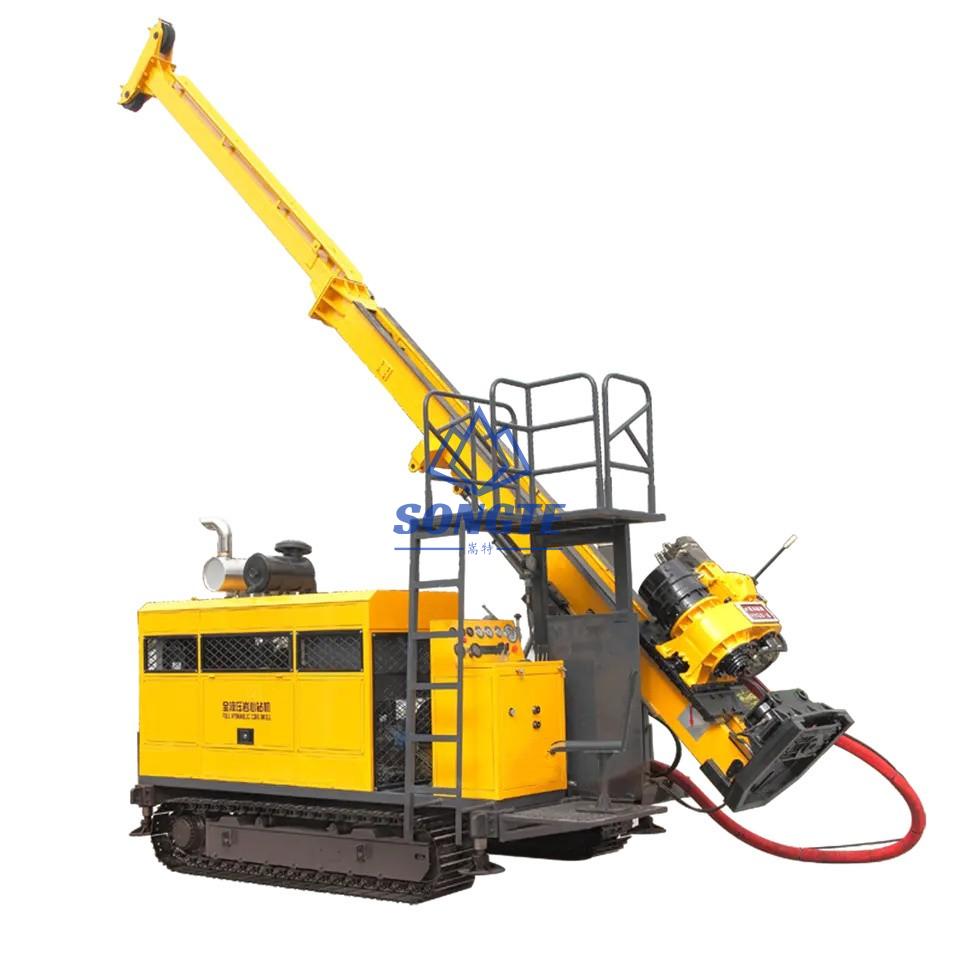

SCF-4 Full Hydraulic Diamond Core Drilling Equipment Main Features:
- The drilling rig is equiped with a series motor driving pump. The feeding and lifting of the rotary power unit are driven in the structure of the cylinder directly pushing, with a 3.5m (11.5 feet) stroke.
- The rotation of the spindle is driven by a single-engine. It has four mechanical shifts of range of speeds, and the speed could be adjusted hydraulically with steeples change.
- The rig is simple in structure. It is light and easy for transportation;
- The mast has the functions of sliding and touching ground;
- The spindle lifted and lowered with hydraulic cylinder; it could be folded for transport and relocation. The spindle hole is in large diameter.
SCF-4 Full Hydraulic Diamond Core Drilling Equipment Technical Parameters:
Diesel Engine | Model | Cummins 6BTA5.9-C180 (turbocharged and charge water cooled) |
Displacement | 5.9L (1.56 US Gallons) | |
Power | 132Kw (180HP) | |
Rated RPM(Factory setting) | 2200rpm | |
Drilling Capacity | BQ | 1000m(3280feet) |
NQ | 700m(2296 feet) | |
HQ | 500m(1640 feet) | |
PQ | 300m(984 feet) | |
Mud Pump | Type | Reciprocating pump Triplex Plunger |
Model | BW160/10 | |
Stroke | 70mm(2.76 inch) | |
Discharge pressure | 2.5, 4.0, 6.5, 10.0 Mpa(363, 580, 943, 1450 psi) | |
Foot Clamp | Clamping Scope | 55.5-110 mm(2.19-4.33 inch)through hole Ф154mm(6.06 inch) |
Others | Weight (platform type) | 9300 Kg(20506 lb) |
Dimensions (L×W×H) | 5100×2200×2650mm(200×86.6×104.3 inch) | |
Transport Way | Crawler |

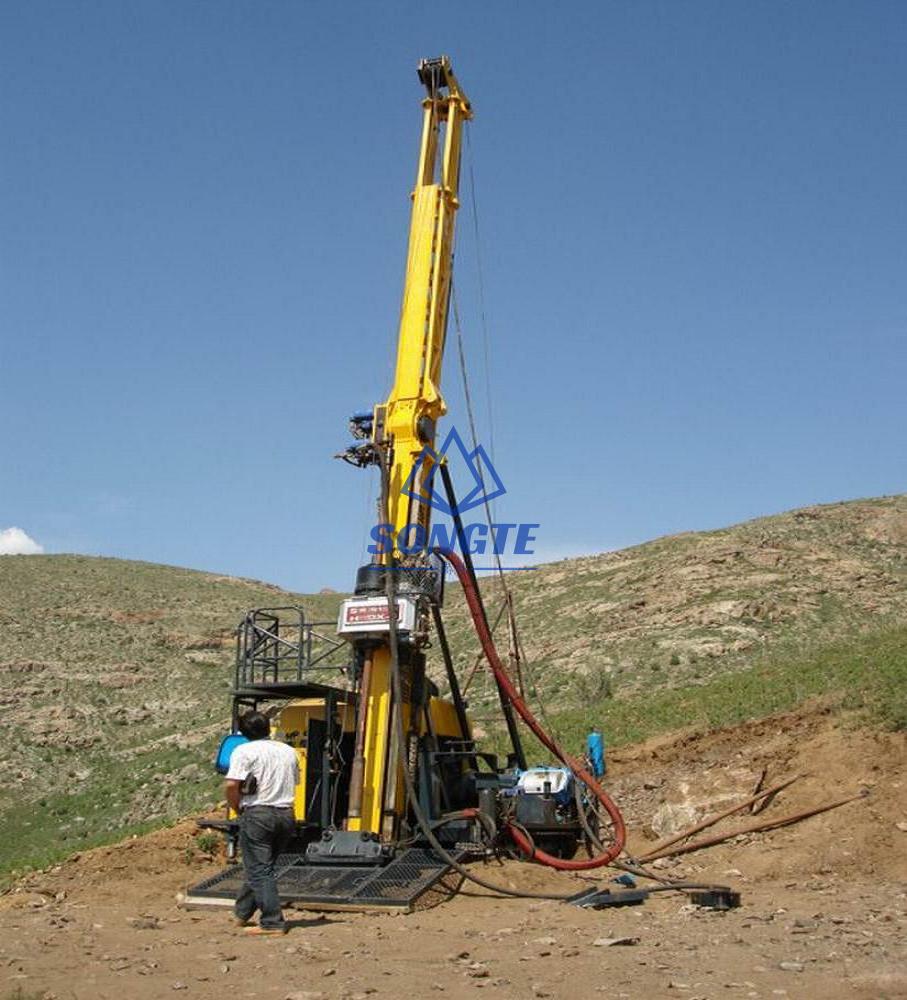

SCF-4 Full Hydraulic Diamond Core Drilling Equipment Exploration Worksite:
