300m Multifunctional Underground Water Borehole Drilling Rig (SW-300C)

Product: Crawler Mounted Borehole Drilling Rig For Water
Drilling depth: 300m
Drilling diameter: 140-325mm
Engine: 85KW Yuchai engine
Application: water boreholes drilling, applicable for water drilling for water conservancy project, farm irrigation wells, geothermal air conditioner wells and other pile foundation projects and so on.

We’re here to help,
Easy ways to get the answers you need.

Mobile Phone: 008618137852864

Email: info@songtemachine.com

  • Product Details

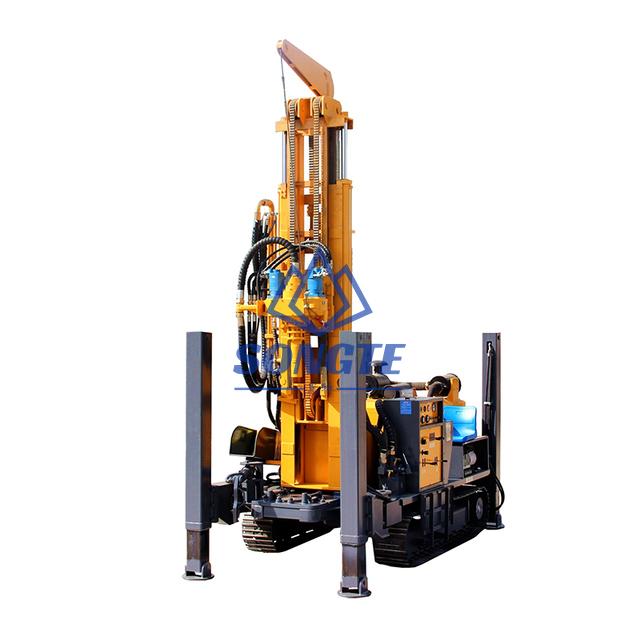

300m Multifunctional Underground Water Borehole Drilling Rig (SW-300C)

SW-300C crawler type water well drilling rig is efficient and multifunctional, which can be used for drilling wells, agricultural irrigation wells, geothermal wells and other types of wells. It is especially suitable for water intake projects in mountainous areas and rock formations. It is top head driving, both mud pump drilling and air compressor drilling. Adopting the newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection, our water well drilling machines are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation, etc.

Multifunctional Underground Water Borehole Drilling Rig Features:

1. Triple gear pump is adopted to ensure the durability and reliability of the oil pump
2. The designed composite boom is adopted. The boom has small volume, long stroke, double oil cylinder lifting force and large lifting tonnage of the drilling rig;
The drill boom is equipped with a limit device to protect the safety of the oil cylinder and ensure the work safety;
3. Each drilling rig is equipped with a baffle on the main boom to protect the oil cylinder; Each hydraulic oil pipe is equipped with a thickened protective sleeve to prolong the service life of the oil pipe;
4. This machine adopts excavator crawler chassis, with high off-road performance, and can also be installed on trucks, with stronger mobility.
5. Traveling device: equipped with new traveling motor and reducer, with long service life;
6. Hydraulic oil pump: imported from the United States, parallel gearbox design, oil pump separation, providing sufficient and reasonable power distribution. The advanced hydraulic system has unique design, simple maintenance and low cost;
7. The machine adopts large torque hydraulic motor power head and brand diesel engine, and the hydraulic control system adopts large diameter hydraulic cylinder. The brand diesel engine has a two-stage air filtration system protection, and can also directly use the clean air of the air compressor.
8. Hydraulic high outrigger, convenient for loading and unloading on the truck;
9. Dual system: could work with air compressor for air DTH hammer drilling, also could work with mud pump for rotary mud drilling.

Multifunctional Underground Water Borehole Drilling Rig Technical Parameters:

Model

SW-300C

Drilling depth(m)

300

Drilling diameter (mm)

140-325

Drill rod diameter(mm)

Φ76 Φ89 Φ102

Drill rod length(m)

1.5m 2m 3m

Rig lifting capacity (t)

18

Winch lifting capacity (t)

2

One-time advance length (m)

3.3/4.8

Rapid rise speed(m/min)

22

Fast feeding speed(m/min)

40

Walking speed(km/h)

2.5

Climbing angles(Max.)

30°

Rotating speed(rpm)

45-70

Rotating torque(N.m)

5700-7500

Rig engine power(KW)

85

Engine brand

Yuchai

Working pressure(Mpa)

1.7-3.0

Air consumption(m³/min)

17-36

The penetration efficiency(m/h)

15-35

High hydraulic leg stroke(m)

1.4

Width of loading(m)

2.7

Dimension (mm)

4100*2000*2500

The weight (T)

7.2

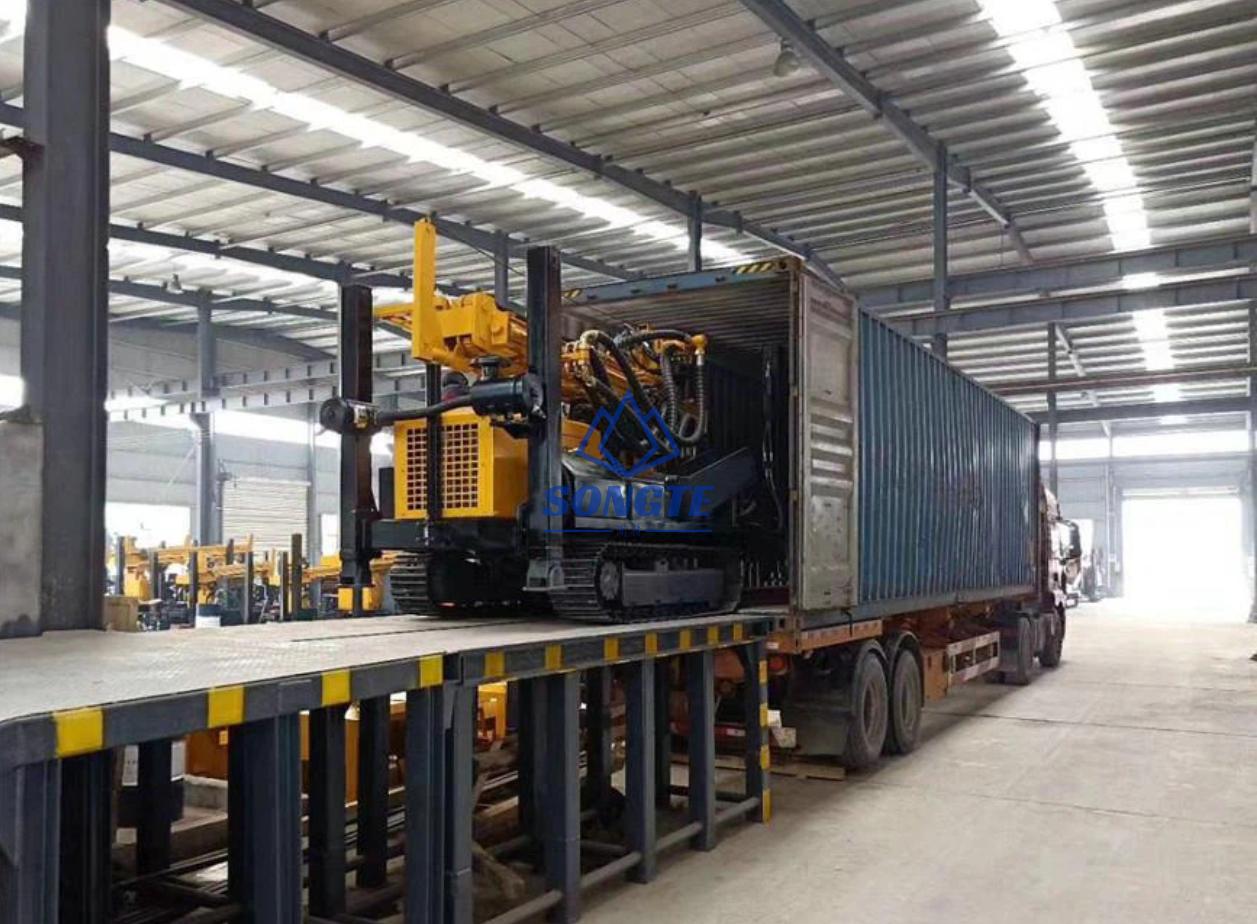

Multifunctional Underground Water Borehole Drilling Rig Delivery:
