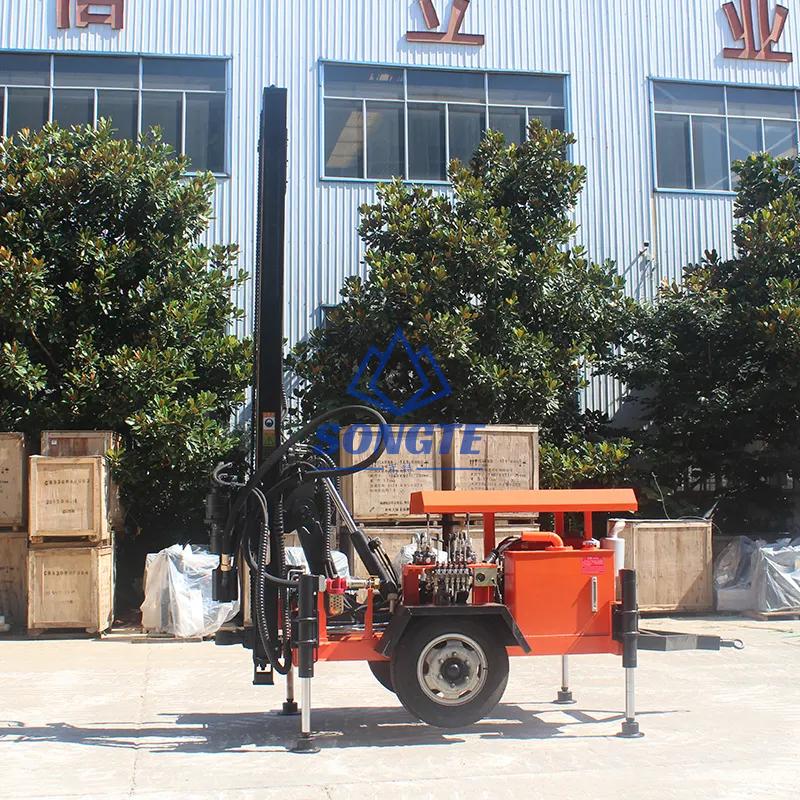

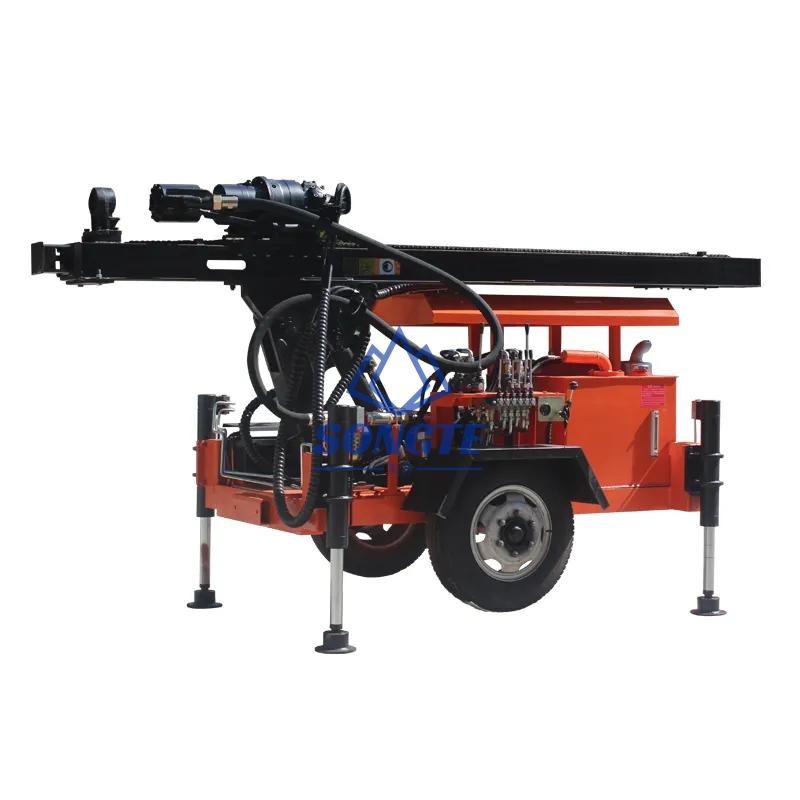

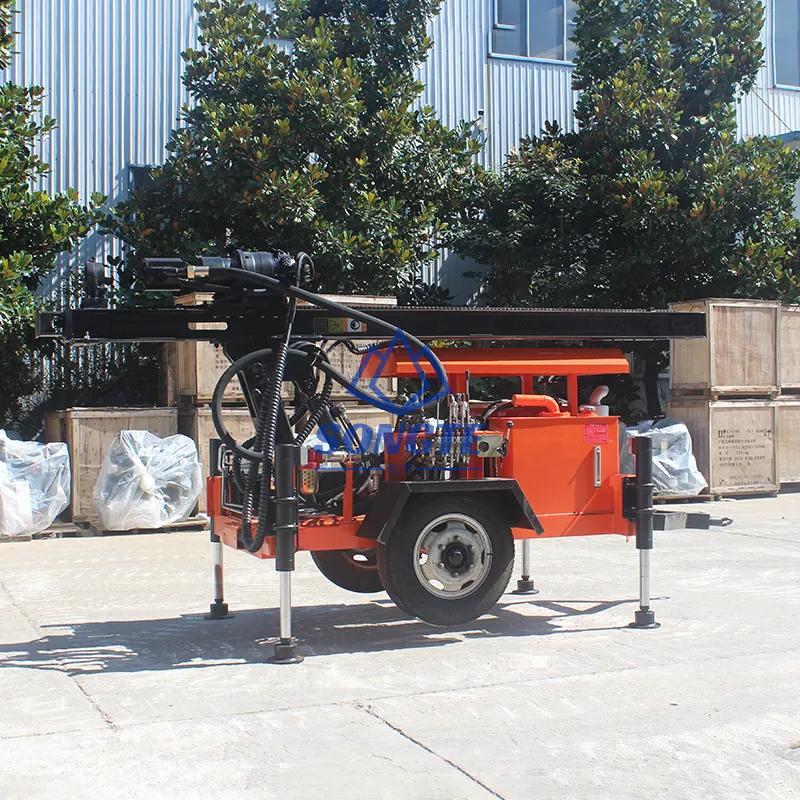

120m Trailer Drilling Machine For Drinking Water (SW-120L)

Product: Trailer Drilling Machine For Drinking Water
Drilling depth: 120m
Drilling diameter: 90-150mm
Engine: 16.2KW diesel engine
Application: water boreholes drilling, applicable for water drilling for water conservancy project, farm irrigation wells, geothermal air conditioner wells and other pile foundation projects and so on.

We’re here to help,
Easy ways to get the answers you need.

Mobile Phone: 008618137852864

Email: info@www.songtemachine.com

  • Product Details

120m Trailer Drilling Machine For Drinking Water (SW-120L)

SW-120L Trailer Drilling Machine Product Introduction:

it is a trailer mounted small water well drilling machine which uses advanced hydraulic technology, top head driving, and it can work with both mud pump and air compressor.

Trailer Drilling Machine for Drinking Water Main Features:

  1. This rig adopts hydraulic system, large torque, high drilling efficiency.
  2. Designed as trailer mounted type, convenient for transportation.
  3. It is a very economic and practical small bore well drilling machine, the economic benefits created for the users are extremely impressive.
  4. This drilling rig can work with both mud pump and air compressor, suitable for various geological structures.
  5. This rig is equiped with diesel engine as power, can be used in any place, especially the place where electricity is not available.

SW-120L Trailer Mounted Water Drilling Machine Application:

This rig is widely used in drilling water wells, boreholes, farm irrigation, geothermal air-condition holes, agricultural irrigation wells, rural poverty relief wells, civil draft wells, ground source heat pump wells.

SW-120L Trailer Water Drilling Machine Technical Parameters:



Geology drilled

All kinds

Drill depth

0-120 m

Drilling Diameter

90 -150mm

Drill system and operation




Drill pipe length

2.00 meter

Drill pipe diameter

60/76 mm



Flow capacity

200 liter/min

Max. working pressure




Hydraulic tank capacity

140 liter



Overall length

3200 mm

Overall width

1400 mm

Overall height

1500 mm

Diesel engine




Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.

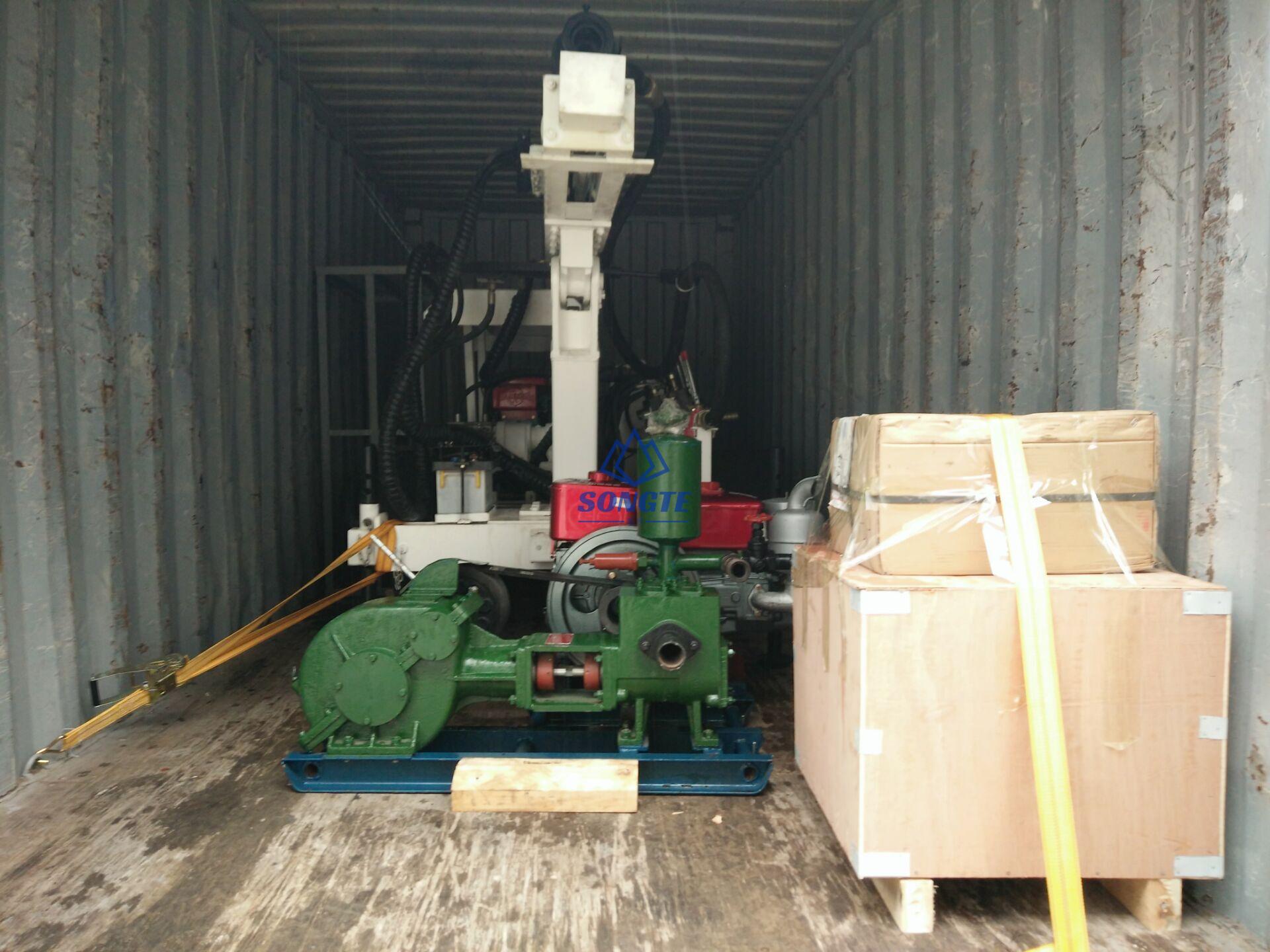

SW-120L Trailer Type Water Drilling Rig Delivery:
