200m Small Water Drilling Machine Farm Irrigation Well Drill Rig (SW-200QY)

Product: Crawler Mounted Water Drilling Machine
Drilling depth: 200m
Drilling diameter: 100-300mm
Engine: 78KW
Application: water boreholes drilling, applicable for water drilling for water conservancy project, farm irrigation wells, geothermal drilling, house yard, gardens and water well drilling, also can be used in small building piling, like farmhouse or factory.

We’re here to help,
Easy ways to get the answers you need.

Mobile Phone: 008618137852864

Email: info@www.songtemachine.com

  • Product Details

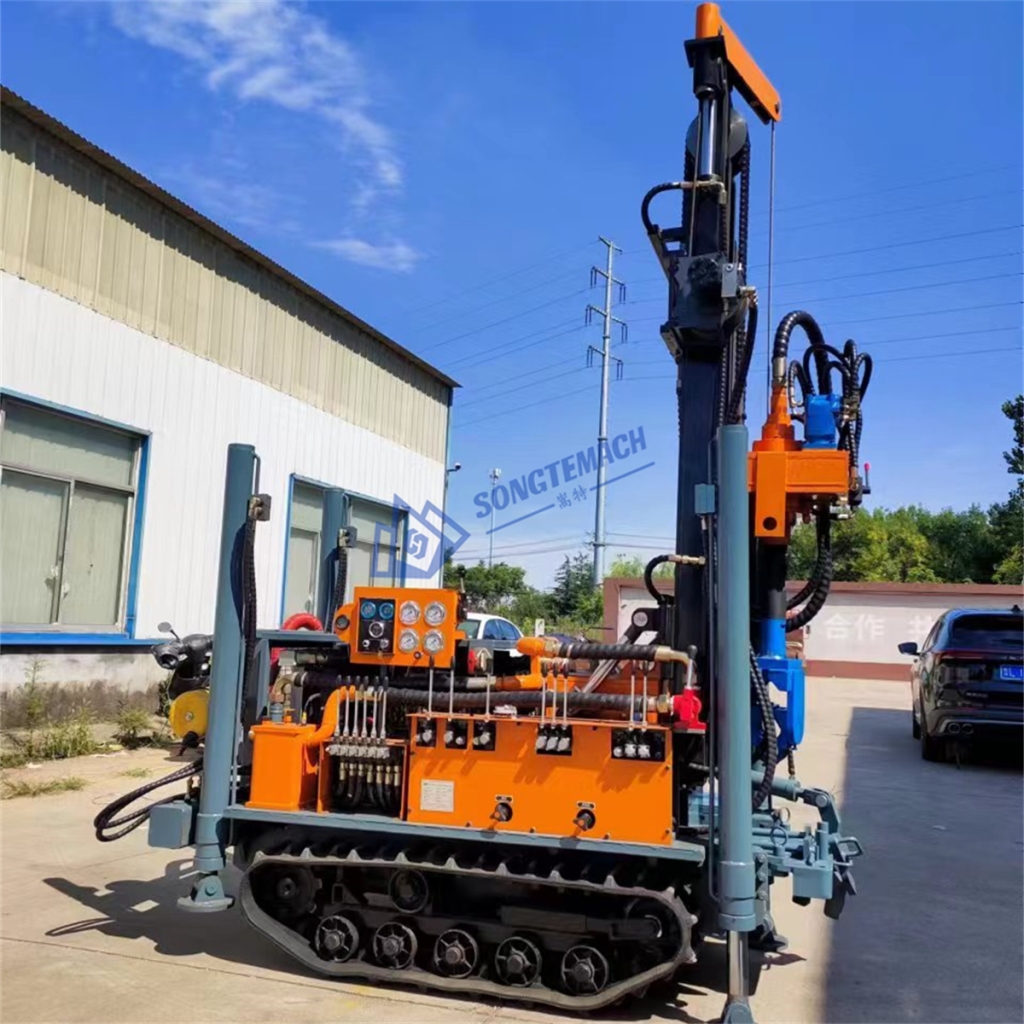

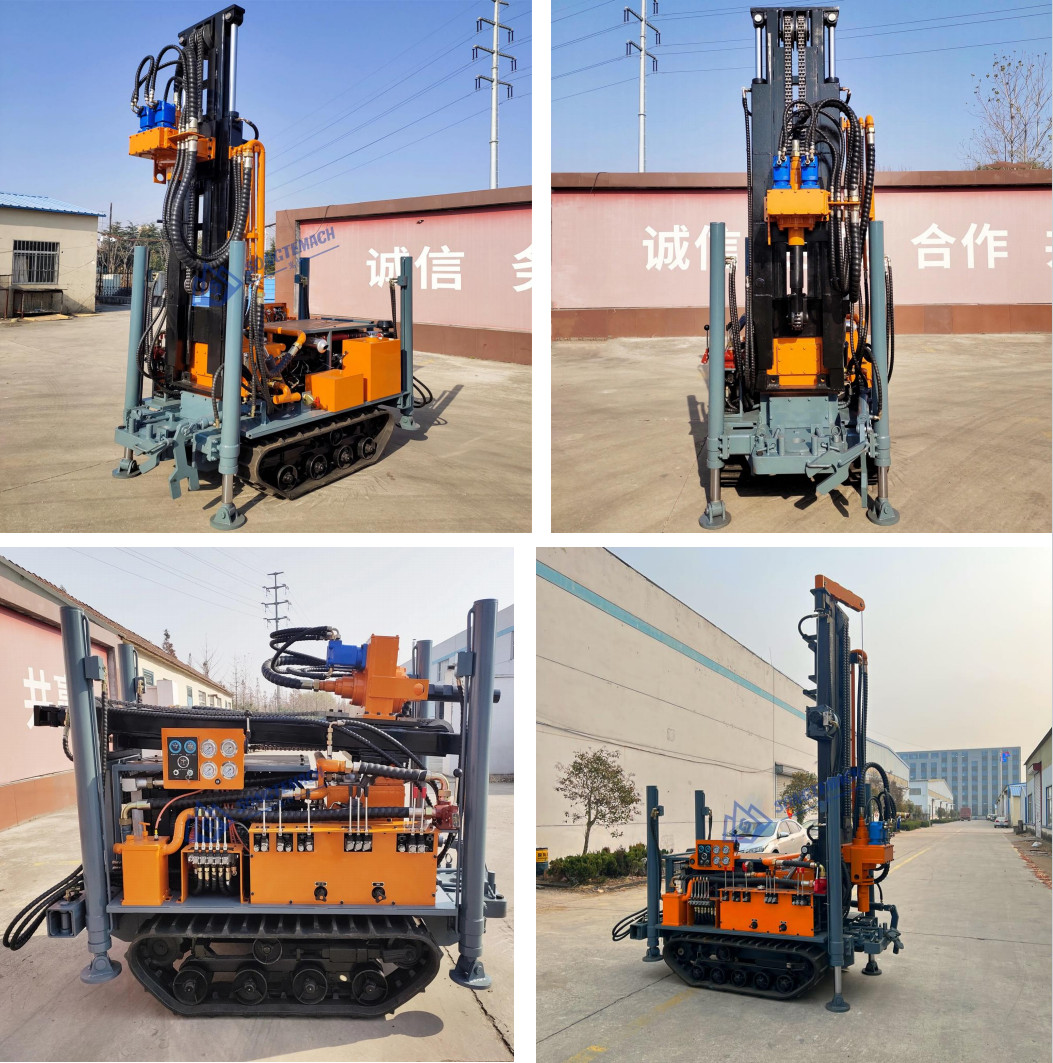

200m Small Size Water Drilling Machine Farm Irrigation Well Drilling Rig (SW-200QY)

SW-200QY crawler self-propelled water well drilling rig is a small volume, lightweight, efficient and multifunctional drilling equipment , it is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.This water well drilling rig could work with mud pump for mud rotary drilling, also could work with air compressor for DTH hammer drilling, strong drilling ability in different geological conditions, mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, also can be used in small building piling, like farmhouse or factory.

Main Features:

  1. this rig adopts new hydraulic technology, equipped with large torque hydraulic motor rotation and large bore hydraulic cylinder propulsion.
  2. The famous brand Yuchai 78KW four-cylinder engine provides power, convenient for using in the place with no electricity.
  3. The unique design of the hydraulic pump set is convenient for maintenance and reduces maintenance costs.
  4. The machine adopts engineering special rubber track, which will not damage the road surface during driving.
  5. The hydraulic operating lever and instrument panel are centrally arranged on the right side of the machine, which is convenient for operation and improves the operating efficiency of the machine.
  6. The hoist with 8-12T lifting force can easily lift the drill pipe and impactor.
  7. Adopts large torque rotary motor, with 7800N.m rotary torque.
  8. Equiped with 4 hydraulic high support legs, which can be lifting 1.6m height, can be easily loading and unloading on the truck, saving loading and unloading charge.
  9. The transportation size is 2.1m*1.2*1.9m, small size with compact structure, convenient for the transportation of the drilling rig, is an ideal drilling rig for using in courtyard, garden, hourse yard, and other narrow space and small space.

Technical Parameters:

Model SW-200QY
Drilling depth 200m
Drilling diameter Ф100mm-Ф300mm
Diameter of drill rod Ф76mm Ф89mm
Drill rod length 2m / 3m optional
Hydraulic pump 32/32/16 ml/min
Rotary speed 38-80rpm/min
Rotary torque 7800N.m
Lifting force 8-12T
Working air pressure 1.45-2.5Mpa
Air consumption 15-27m³/min
Travelling speed 2.5km/h
Climbing ability 25°
Engine power 78KW Yuchai engine
Dimension 2100x1200x1900mm
Weight 2600kg

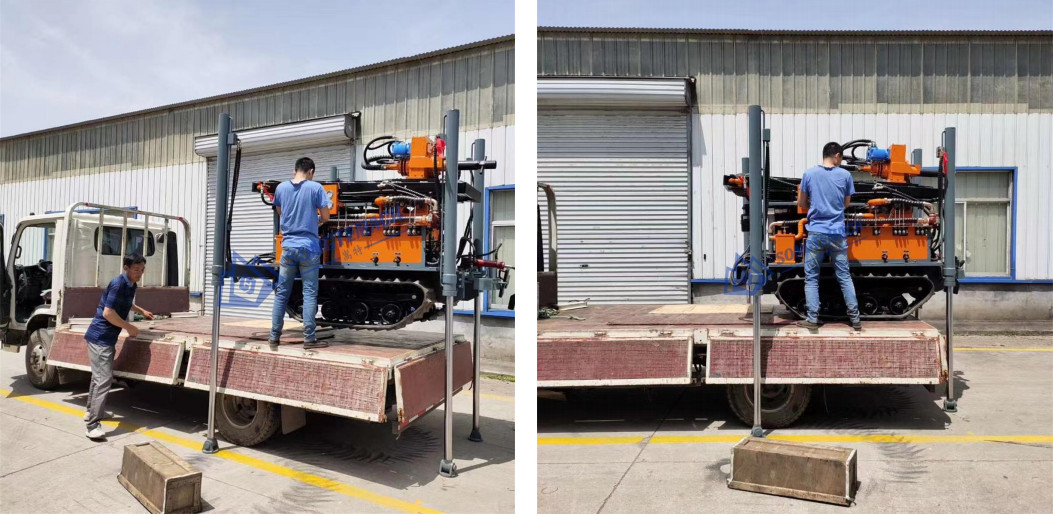

Delivery Picture:
