SD-535 With Built-in Air Compressor Crawler Air DTH Hammer Rig For Quarry Drilling

Product: Crawler Air DTH Hammer Drilling Rig Built-in Air Compressor
Drilling Depth: 20m
Drilling diameter :80-118mm
Air Compressor: 10m³/min
Power: 142KW Cummins Engine
Application: widely used in surface quarry and mining blast hole drilling, pre-splitting hole drilling, buffer hole and slope pressure relief hole drilling, and super deep hole drilling.

We’re here to help,
Easy ways to get the answers you need.

Mobile Phone: 008618137852864

Email: info@www.songtemachine.com

  • Product Details

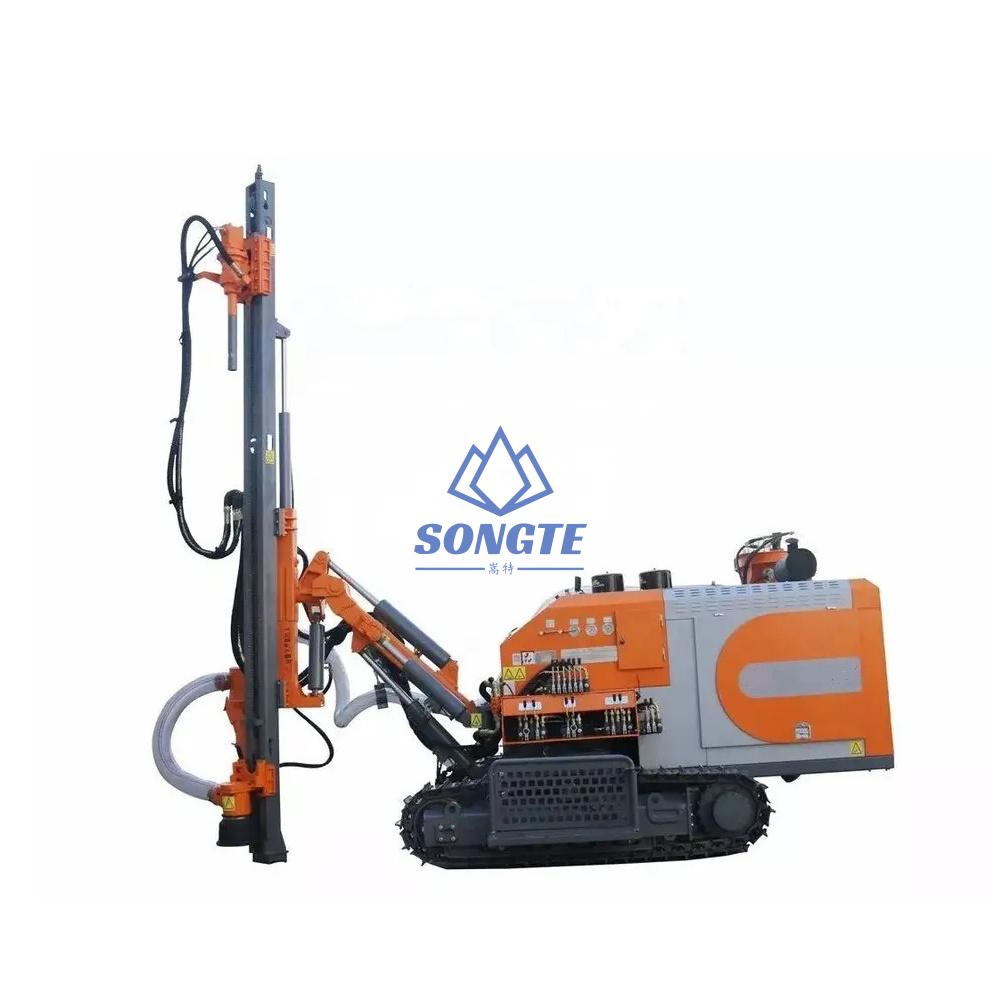

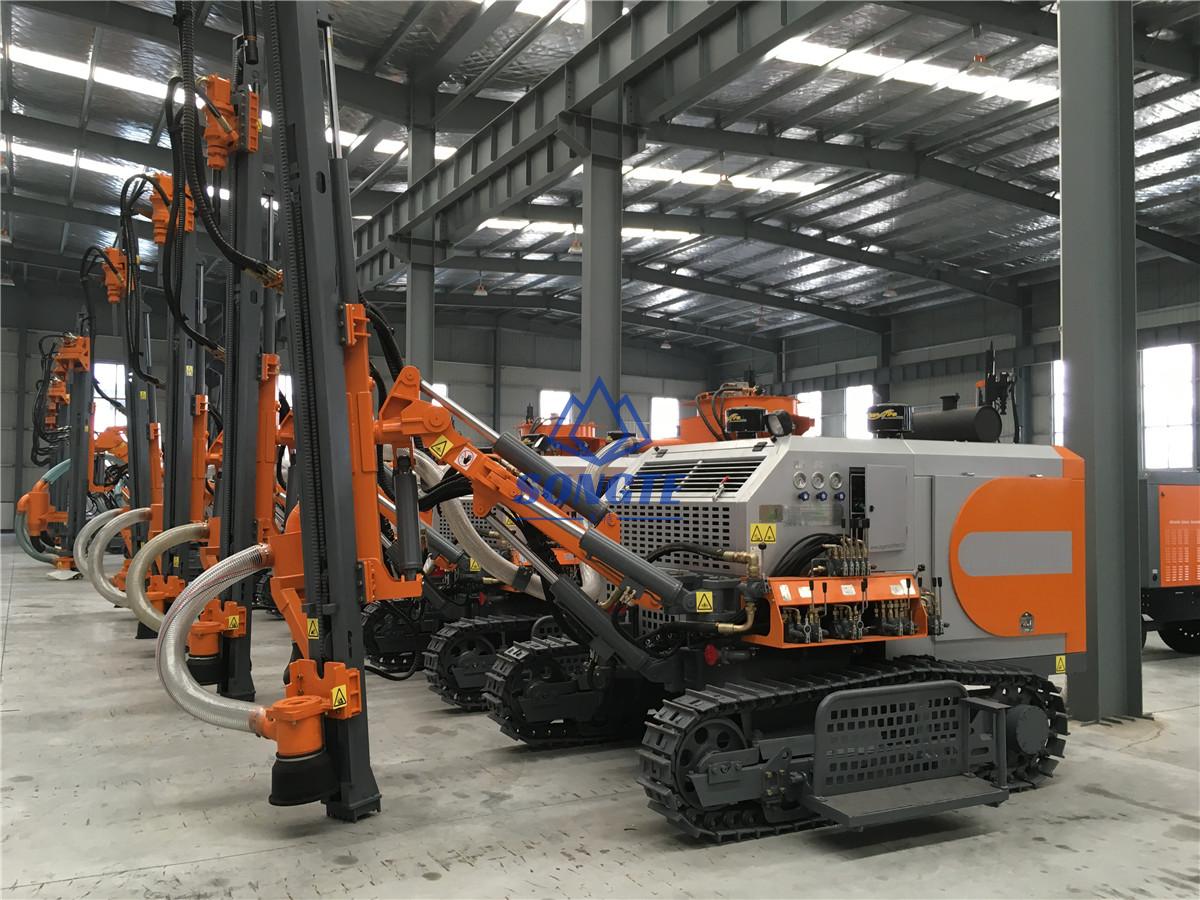

SD-535 With Built-in Air Compressor Crawler Air DTH Hammer Rig For Quarry Drilling

SD-535 integrated DTH drilling rig, an upgrade from existing mature model, with core components upgraded to world famous brands. Single power pack (only one diesel engine) drives both screw air compressor and hydraulic system with power output of stagger design.

Comparing with separated drills, the power consumption of diesel engine is reduced by 30% and maintenance cost down by 50%. The integrated designed of SD-535 for improved production efficiency without towed air compressor behind with less air transmission loss and better long-distance fleet management.

SD-535 Open Mining Air DTH Hammer Rig Features:
1.Powerful Rotation Unit
Bigger and stronger designed Rotation unit for smooth high torque output and less drill tool jamming with seamless speed regulation.
2.Multi-directional drill design.
For complex drilling conditions, 400 mm ground clearance for horizontal drilling applications.
3.New protective cover
Better appearance and convenient for maintenance.
4.Ergonomic comfortable operation console
Centralized control, convenience, efficient control console and full display panel of functions.
5.Dust collecting system
High efficiency two stage dust collector with high speed fan for larger filter area, technical advanced and industry leading.
6.Standard tramming mechanism
Equipped with speed reduction tramming system and standard excavator track for compact structure. Excellent off-road performance with powerful two-speed hydraulic tramming system for extreme low failure rate.

SD-535 Crawler Type DTH Blasting Drilling Rig Technical Parameters:

SD-535 Crawler type DTH drilling rig
Engine Manufacturer Cummins Engine Model 6BTAA5.9-C190
Engine Rated Power 142 kW Engine Emission Euro II
F.A.D 10 m³/min Working Pressure 14.5 Bar
Rotation Speed 0-110 rpm Rotary Torque 1,550 Nm
Hole Diameter Range Ø80-118 mm DTH Hammer 3.5 inch
Hole Depth 20 m Number of Pipes 6+1
Drill pipe type 60 mm Pipe Length 3,000 mm(collaring 2000 mm)
Feed Type Cylinder / Chain Length of Feed Beam 5,340 mm
Feed Extension 960 mm Feed Travel Length 3,200 mm
Feed Speed 0.75 m/s Pull Up Force(Max.) 25 kN
Max. Climbing Ability 25° Feed Force(Max.) 15 kN
Tramming Speed high 3.2 km/h,low 2 km/h Traction Force( Max.) 65 kN
Ground Clearance 540 mm Fuel Tank Capacity 170 L
Length 6,050 mm Width 2,560 mm
Height 2,720 mm Weight(options excluded) 6,850 kg

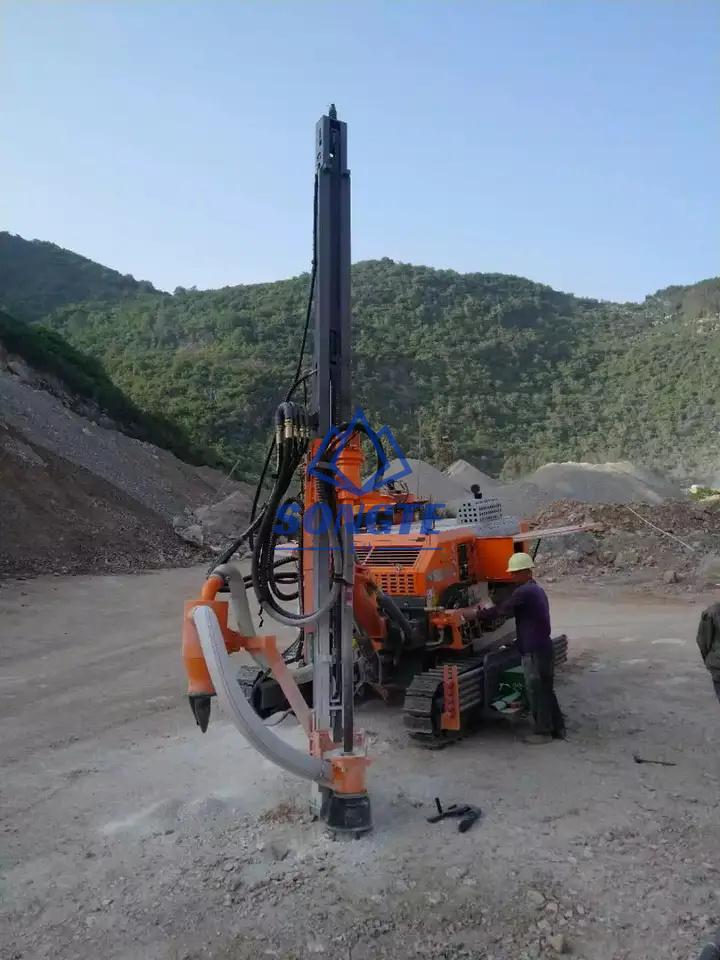

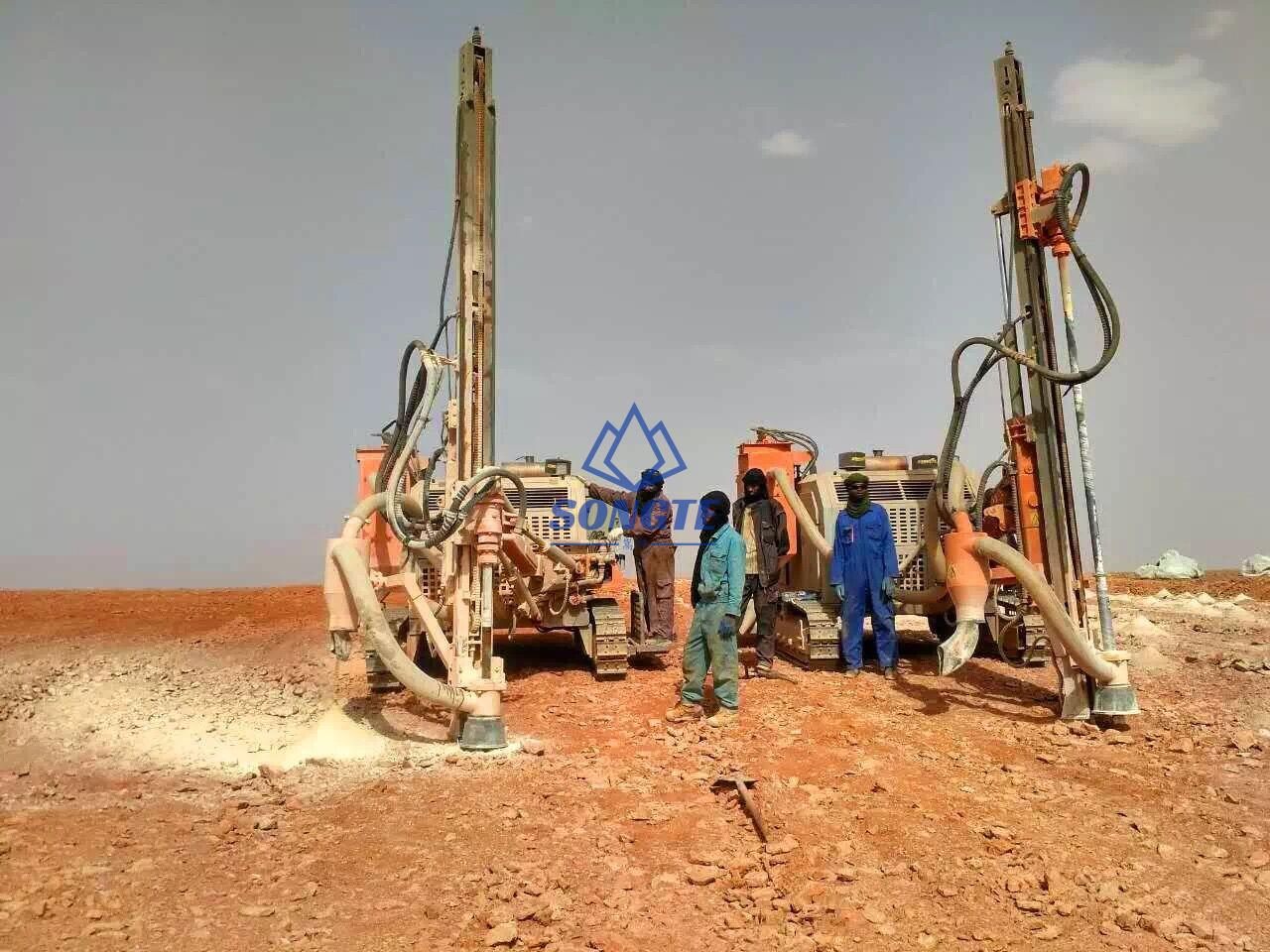

Crawler Type DTH Drilling Rig BoreHole Drilling Site:
