SD-115Y Crawler Type Borehole Blasting Drilling Rig 40m Hammer Drilling

Product: Crawler Type Borehole Blasting Drilling rig
Drilling Depth: 40m
Drilling diameter :90-165mm
Power: 61HP diesel engine
Drilling method: widely used in mining, construction, quarrying, and exploration activities for drilling blastholes, foundation holes, anchors, geothermal wells, etc.

We’re here to help,
Easy ways to get the answers you need.

Mobile Phone: 008618137852864

Email: info@www.songtemachine.com

  • Product Details

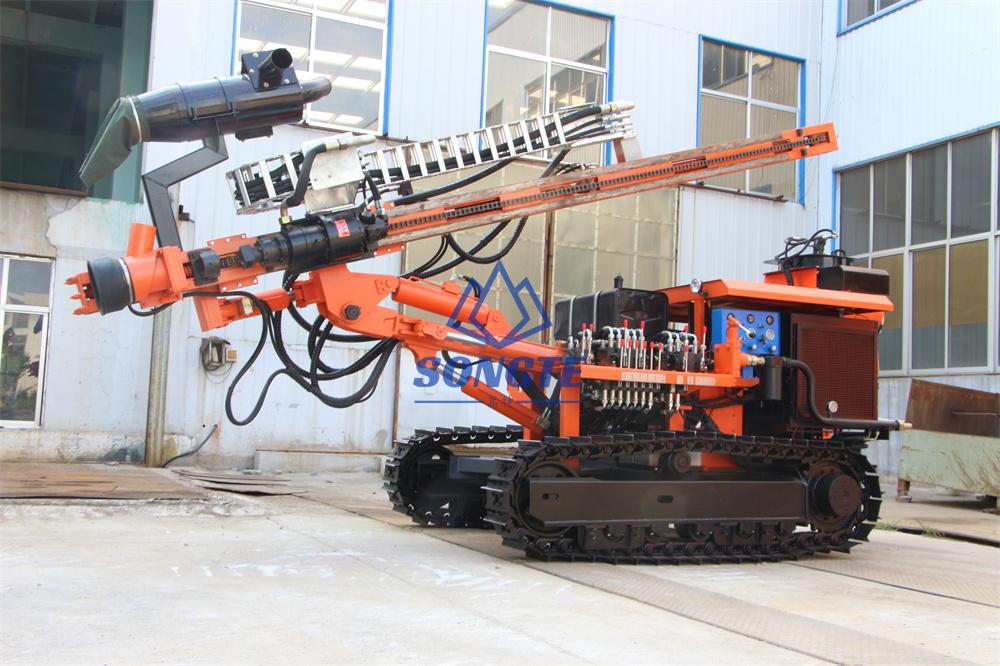

SD-115Y Crawler Type Borehole Blasting Drilling Rig

SD-115Y crawler hydraulic drilling rig adopts new hydraulic technology, which has low air consumption, high rotary torque and convenient hole displacement. ,The drilling rig structure is compact and machine mast has compensation function. The mast is supported on the ground during drilling so that drilling stability is good.

SD-115Y drilling rig has advantage of reliable performance, high drilling efficiency, It has 1-2 times higher efficiency than low air pressure drilling rigs during hard rock drilling process, so it is important for construction clients to reduce the cost, improve efficiency .

The SD-115Y drilling machine is mainly used for open mining, quarrying, water conservancy, power plants, road building and other blasting hole drilling projects.

SD-115Y Hydraulic DTH Borehole Drilling Rig Technical Parameters:

Bore diameter(mm) 90-140
Bore depth(m) 40
Walk speed(km/h) 0-2.5
For rock(F) 6-20
Air pressure(Mpa) 0.7-1.6
Air consumption(m³/min) 7-15
Once promotion(mm) 3000
Skid pitch(º) Up and down total 100
swinging angle of skid(º) left and right total 55
boom swing angle(º) left and right total 70
Boom pitch(º) left 45、right 40
Rotation speed(r/min) 0-120
Climb ability(º) 30
Dimension(L*W*H)(mm) 5480*1950*3150
Weight(kg) 5160

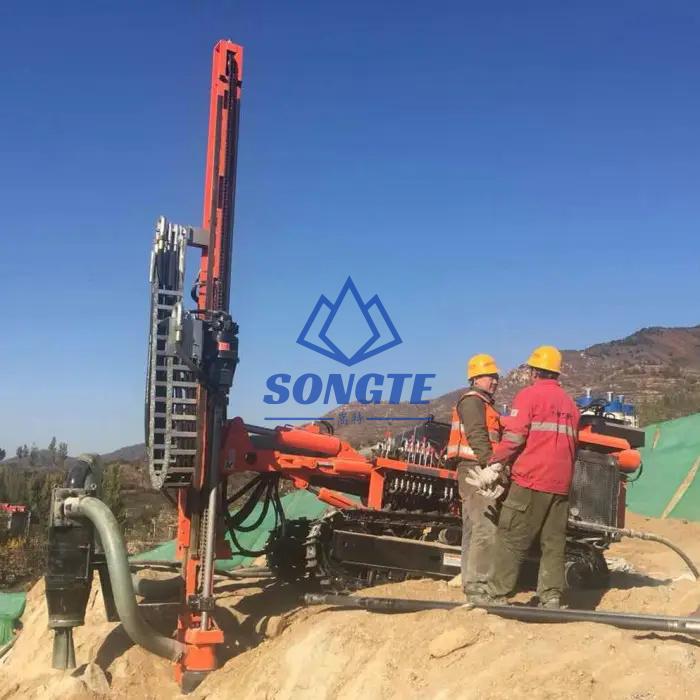

SD-115Y DTH Hammer Drilling Rig Worksite:
