Horizontal Directional Drilling Rig/

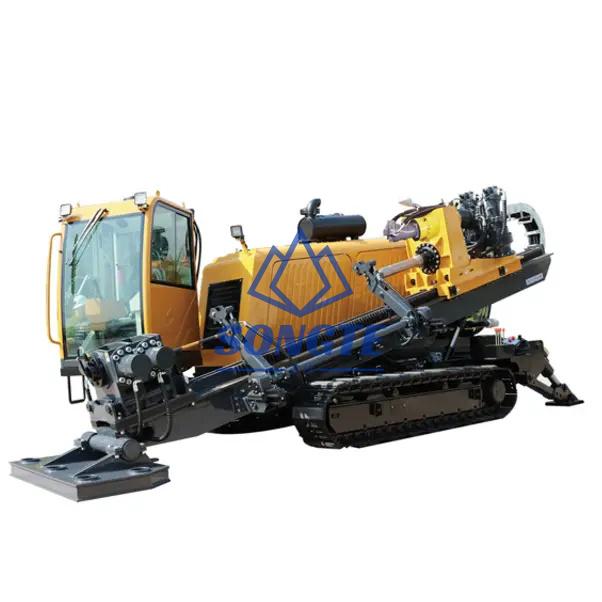

SHDD-45 HDD Driller Horizontal Directional Drilling Rig Trenchless Drilling

Product: HDD Machine
Model: SHDD-45 horizontal directional drilling rig
Feed/Pull Capacity: 450KN
Rotation Torque: 19500N·m
Engine: Cummins 194KW
Application: Horizontal directional drilling rig is a construction machine for laying various underground utilities (pipes, cables, etc.) without excavating the ground surface. It is mainly used to cross roads, railways, buildings and rivers, and to lay or renew pipelines for water supply, gas, electricity, telecommunications, natural gas, oil and sewage discharge under the conditions that it is not easy to excavate in downtown areas, cultural relics protection areas, crop and vegetation protection areas.

We’re here to help,
Easy ways to get the answers you need.

Mobile Phone: 008618137852864

Email: info@www.songtemachine.com

  • Product Details

SHDD-45 HDD Driller Horizontal Directional Drilling Rig

SHDD-45 Horizontal Directional Drilling Rig Main Features:

A. The drilling rig adopts the design concept of short mast, which is light in weight and comfortable in operation. It adopts wired remote control for walking. The main accessories are all well-known products at home and abroad.
B. The Cummins EFI diesel engine features low emission and low noise, and with the use of internationally leading control technology, it is not only more suitable for urban construction, but also minimizes the power consumption of the drilling rig under no-load conditions.
C. The rotation of the power head is driven by dual motors, with large torque, and has a two-speed stepless speed regulation function.
D. The push-pull of the power head is driven by dual motors with a reducer, and driven by rack and pinion, with good stability and high efficiency.
E. The mud pump is in the form of hydraulic drive and mechanical speed change, which can flexibly adjust the pressure and pump volume.
F. The crawler adopts steel crawler and rubber shoe, which can bear high load and walk on various roads.
G. The supporting drilling tools are complete, using φ83×3000mm drill pipe, and can be specially customized according to user requirements.

SHDD-45 Horizontal Directional Drilling Rig Technical Parameters:

Model

SHDD-45

Condition

New

Engine Power

Cummins 6CTA8.3-C260 194KW(2200r/min)

Feed/Pull Capacity

450KN

Rotation Torque

19500N·m

Spindle Rotation Speed

0~60,0~120r/min

Feed Stroke

3500mm

Guide Hole Diameter

φ170mm

Penetration Angle

2-18°

Pressure of Hydraulic System

31.5MPa

Traveling Speed

1.5~3km/h

Mud Pump Max. Flow Rate

400 (plunger)/450 (piston) L/min

Mud Pump Max Pressure

8MPa

Rod Size

φ83×3000mm

Dimensions (L*W*H)

6600*2300*2400mm

Weight (KG)

13000

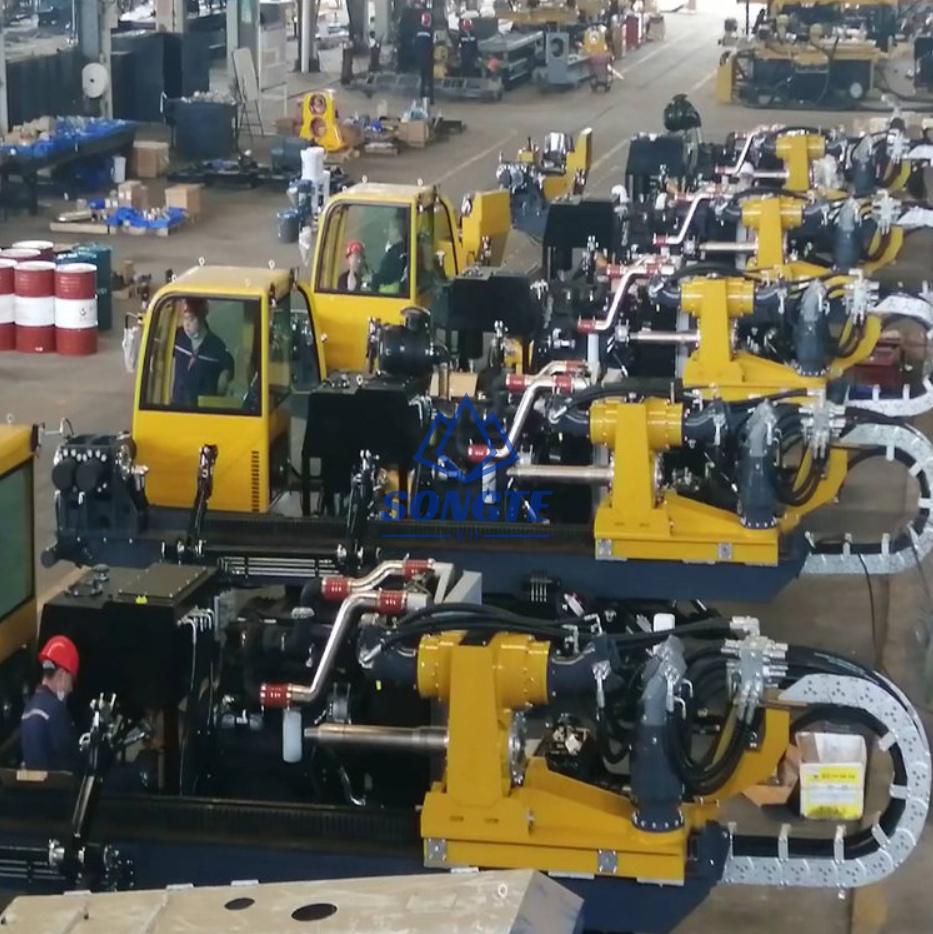

HDD Machine Producing capacity:
