200m Small Truck Mounted Water Drilling Rig (SW-200TJ)

Product: Truck Mounted Water Well Drilling Rig
Drilling Depth: 200m
Drilling Diameter: 75~300mm
Application: mainly used in drilling projects such as water well drilling, farm irrigation, mineral exploration, geophysical exploration, road and building exploration, etc.

We’re here to help,
Easy ways to get the answers you need.
Mobile Phone: 008618137852864
Email: info@www.songtemachine.com

  • Product Details

200m Small Truck Mounted Water Drilling Rig (SW-200TJ)

Rig Introduction

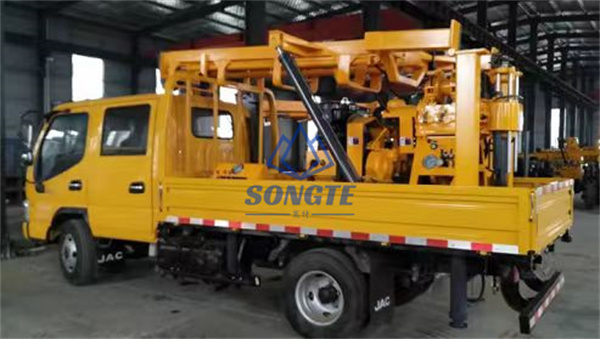

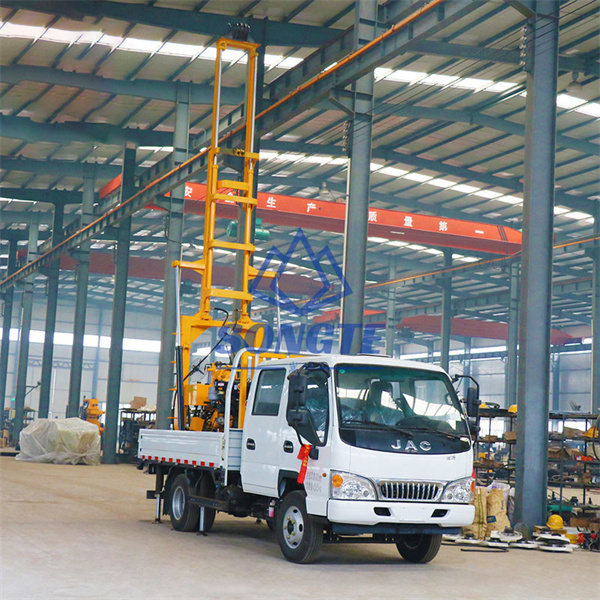

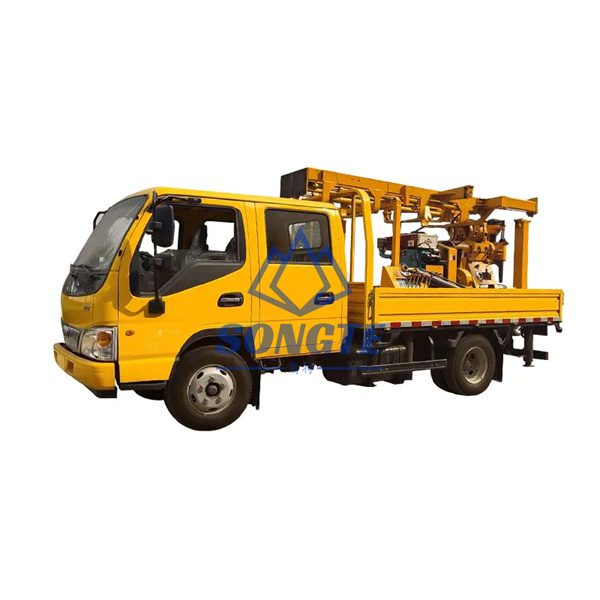

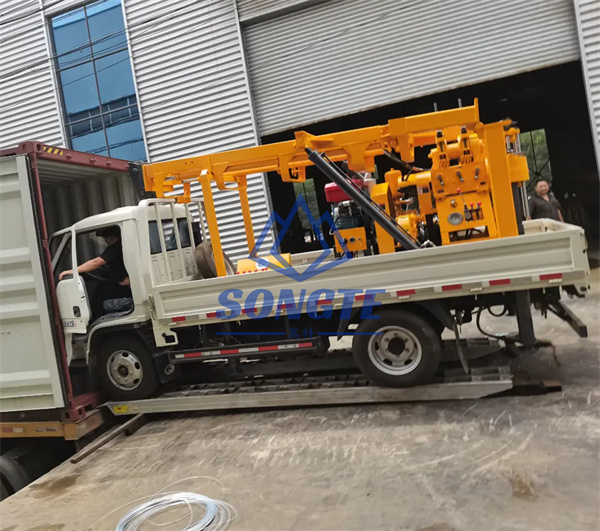

The SW-200TJ truck mounted drilling rig is mounted on famous brand JAC 4×2 truck chassis, hydraulic telescopic type drilling tower mounted on crawler chassis, it can realize rapid drilling. Realize the transition and installation of the drilling rig; greatly shorten the preparation time of the drilling rig and the auxiliary time for closing the work after completion. It also improves the working efficiency of drilling tool replacement and reduces the labor intensity of operators. It is the most user-friendly model among this type of drilling rig so far.

Main feature:

  1. The drilling rig adopts an automatic telescopic drilling tower, supported by two high-strength oil cylinders, and a set of hydraulic valves to control the pitching of the drilling tower. The operation saves time and effort, is safe and reliable, and creates maximum benefits for users.
  2. The drilling rig is mounted truck chassis, convenient for moving and transportation, especially convenient travelling in rural area.
  3. It has a hydraulic feeding mechanism to improve drilling efficiency.
  4. The electric start diesel engine is used to reduce the labor intensity of the operator, especially in the cold season, when the diesel engine is difficult to start, it shows great advantages.
  5. The machine is equipped with a BW-160 mud pump, which has a large flow rate and pressure to ensure the drilling depth and caliber.

Scope of application:

  1. This drilling rig is a high-speed drilling rig and is suitable for drilling projects such as water well drilling, farm irrigation, mineralexploration, geophysical exploration, road and building exploration, and blasting holes, water wells, etc.
  2. It is also suitable for various concrete structure inspection holes, river embankments, subgrade grouting hole drilling and direct grouting, civil water wells and geothermal central air-conditioning, etc.
  3. Alloy, diamond and composite drill bits can be selected for drilling according to the bottom layer.
  4. It can drill sandy clay and rock formations of grade 2-9.

Technical Parameter:

Tech parameter Model SW-200TJ
Drilling depth(m) 200
Open hole dia.(mm) 325
End hole dia.(mm) 75
Drill rod dia.(mm) 42-60
drill angle(°) 90-75
Matching power (HP) 22
Weight without power (kg) 3600
Dimension (mm) 3.8×1.95×2.7
Spindle Speed (r/min) 64/128/287/557
Stroke(mm) 450
Dimension Max pull force(kg) 2400
Pull speed(m/min) 0.12-0.95
Rope dia.(mm) φ12.5
Roll capacity(m) 35
Drill Mast Rated load(ton) 18
Height(m) 6.5
Winch Dispalcement(L/min) 160
Max.pressure(Mpa) 1.3
Times (time/min) 165
Inlet hose dia. (mm) 51
Outlet hose dia. (mm) 32
Truck chassis Brand JAC
Drive mode 4×2
Power (kw) 85
Wheel 6
