1400m Full Hydraulic Diamond Core Drilling Rig (SCF-1000L)

Product: Crawler Type Full Hydraulic Core Drilling Machine
Drilling Depth: 1400m/1200m/1000m/800m
Hole Diameter: BTW/NTW/HTW/PQ
Coring method: wire-line coring system
Engine: 118KW engine
Application: widely used in geological prospecting exploration, foundation engineering, water conservancy and hydropower engineering and tunnel belt engineering exploration. It is especially good at mountainous and forest land with complex terrain and inconvenient transportation, plateau and other areas of core drilling exploration.

We’re here to help,
Easy ways to get the answers you need.
Mobile Phone: +8618137852864
Email: info@www.songtemachine.com


  • Product Details

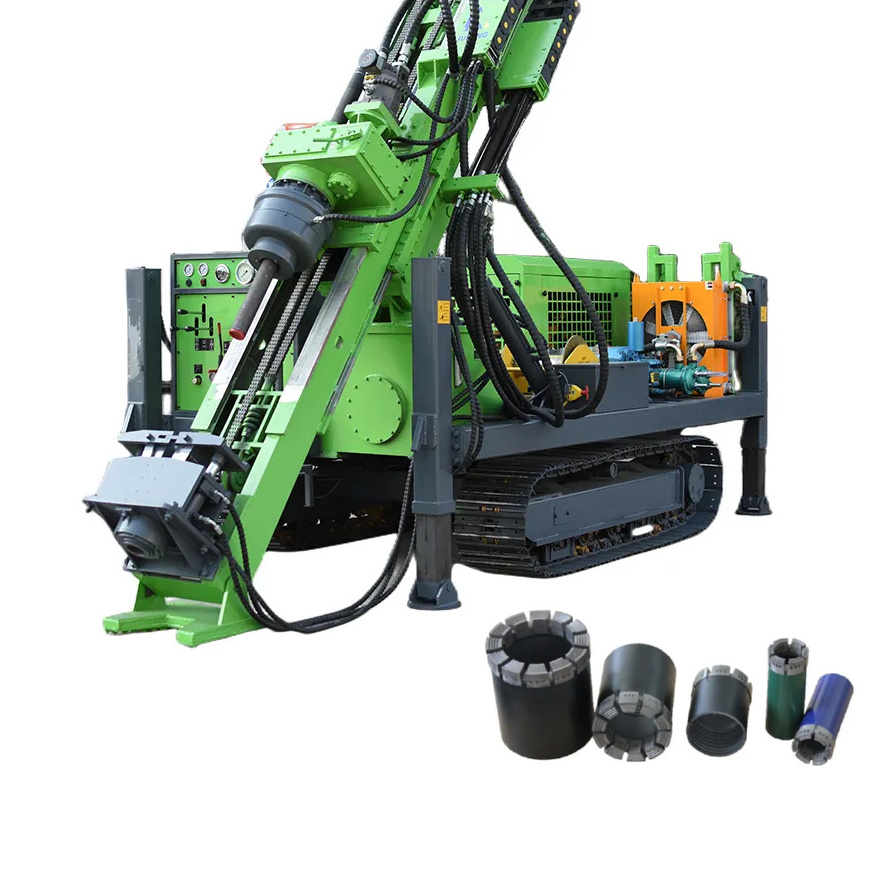

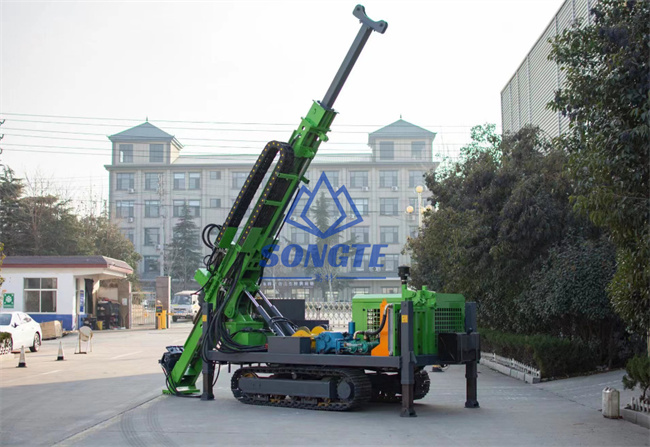

1400m Full Hydraulic Dimond Core Drilling Rig Crawler Mounted (SCF-1000L )

It is mainly applicable to the drilling of solid deposits, engineering geology, shallow oil, natural gas and underground water, as well as tunnel ventilation, drainage and dam grouting.

Diamond Core Drilling Rig Main features

  1. The drilling rig is driven by full hydraulic pressure, the power head rotation is driven by axial piston pump and inclined shaft piston motor, and the mechanical two gears plus stepless speed regulation, with advanced structure.
  2. The power head adopts the double-speed feed mechanism of the oil cylinder chain, which is stable and reliable in movement. It is equipped with a lateral translation mechanism of the power head. The mast uses the oil cylinder to lift and fall, which can slide as a whole, and can drill holes within the range of 0-90 °.
  3. The hydraulic system adopts load sensitive control, with high working efficiency and large torsion.
  4. The drilling rig is equipped with hydraulic trojan holder, hydraulic leveling outrigger, telescopic mast and other devices to facilitate rapid positioning of the drilling rig.
  5. It is equipped with wireless remote control crawler, which is suitable for various terrains, and controls the crawling of the drilling rig within a safe distance to prevent sudden danger.

Full Hydraulic Diamond Core Drilling Rig Technical Parameters

Model SCF-1000L
Drilling capacity BTW (m) 1400
NTW (m) 1200
HTW (m) 1000
PQ (m) 800
Hydraulic system Rated pressure (Mpa) 32+16
Cooling system secondary air cooling + primary water cooling
Diesel Engine Model Yuchai

6 cylinders

Rated power (Kw) 118
Rated speed (rpm) 2300
Power head Max. Torque (N.m) 2600
Max. Ratory Speed (rpm) 1400
Feeding stroke (m) 3.5
Through-hole diameter (mm) 95
Lifting force (kN) 360
Feeding force (kN) 180
Wire-line coring winch Rope capacity (m) 1200
Lifting force (kN) 24
Lifting speed (m/min) 110
Wirerope diameter (mm) 8
Mast Full Height(m) 7.9
Drilling angle(°) 0-90
Slip stroke (mm) 1200
Hydraulic Clamp Through-hole 130mm
Mud pump model BW250
Type Reciprocating Pump Triplex Plunger
Stroke (mm) 100mm
Flow (L/min) 250,145, 90, 52
Pressure (Mpa) 2.5, 4, 6.5, 10
Crawler chassis Climbing angle(°) 30
Walking speed (km/h) 2
Dimension Transportation


Weight(kg) 7300
