Spindle Type Hydraulic Core Drilling Rig For Exploration

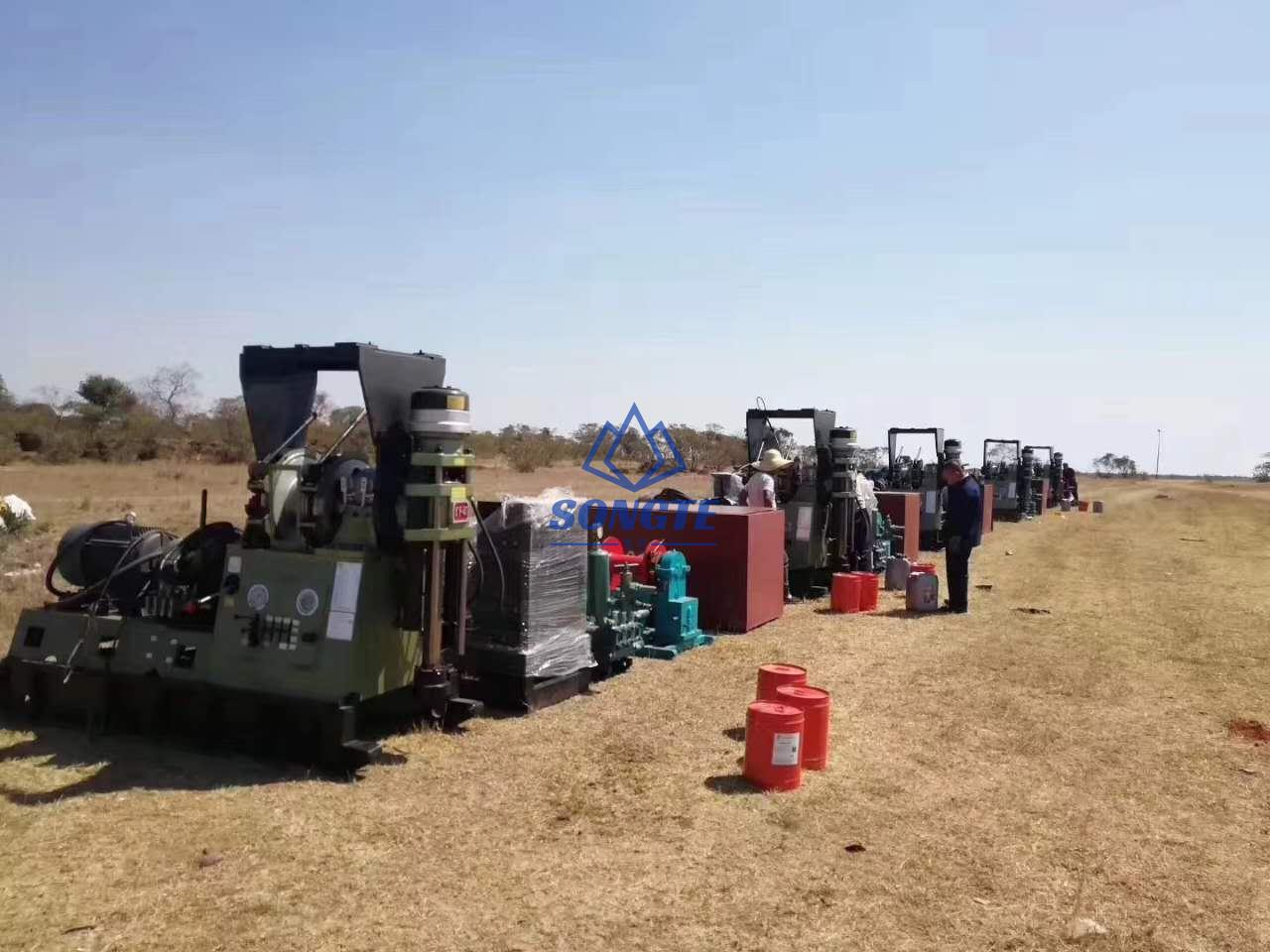

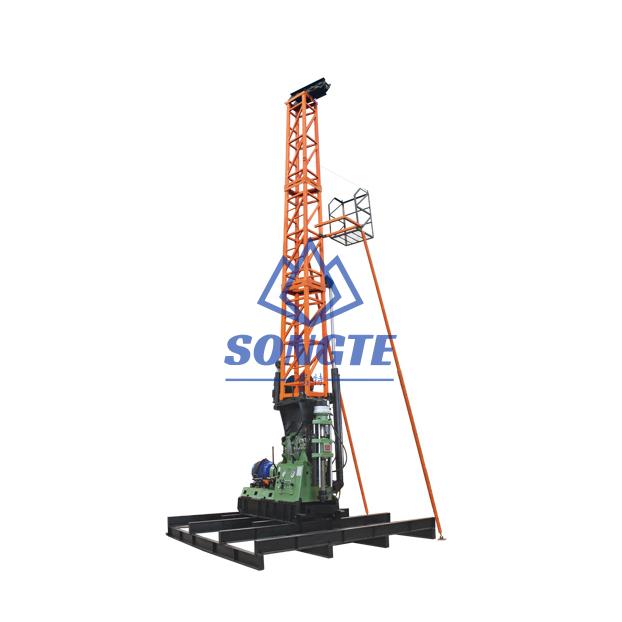

SCS-2T/SCS-4T/SCS-42T/SCS-44T spindle type core drilling rig is integrated with the main machine and drill tower. with the function of hydraulic lifting and lowering of the tower. The rig is simple in structure, reasonable in design, light in weight, easy to operate; it is in a wide range adjusting angle. It is especially suitable for drilling holes with a great slope angle.

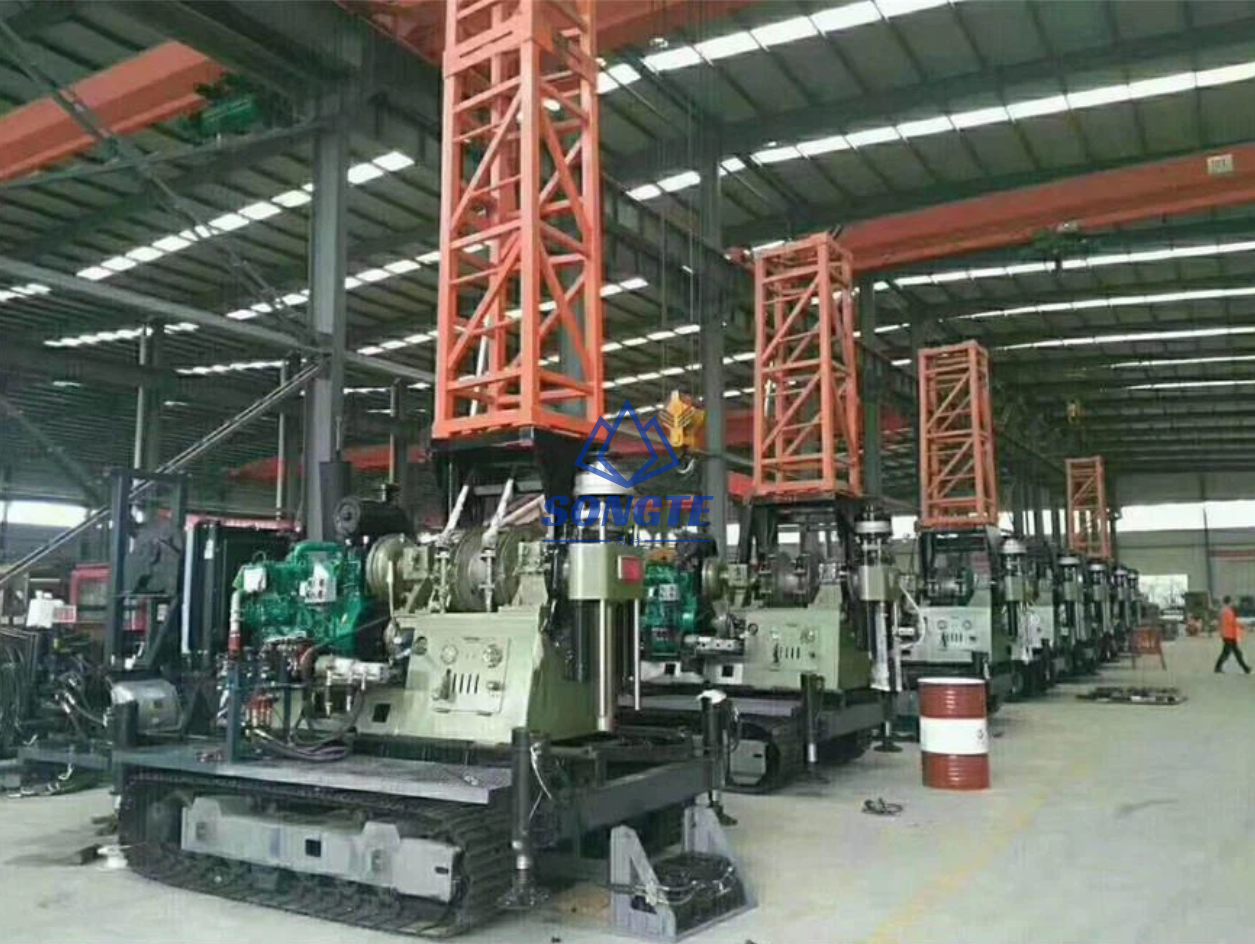

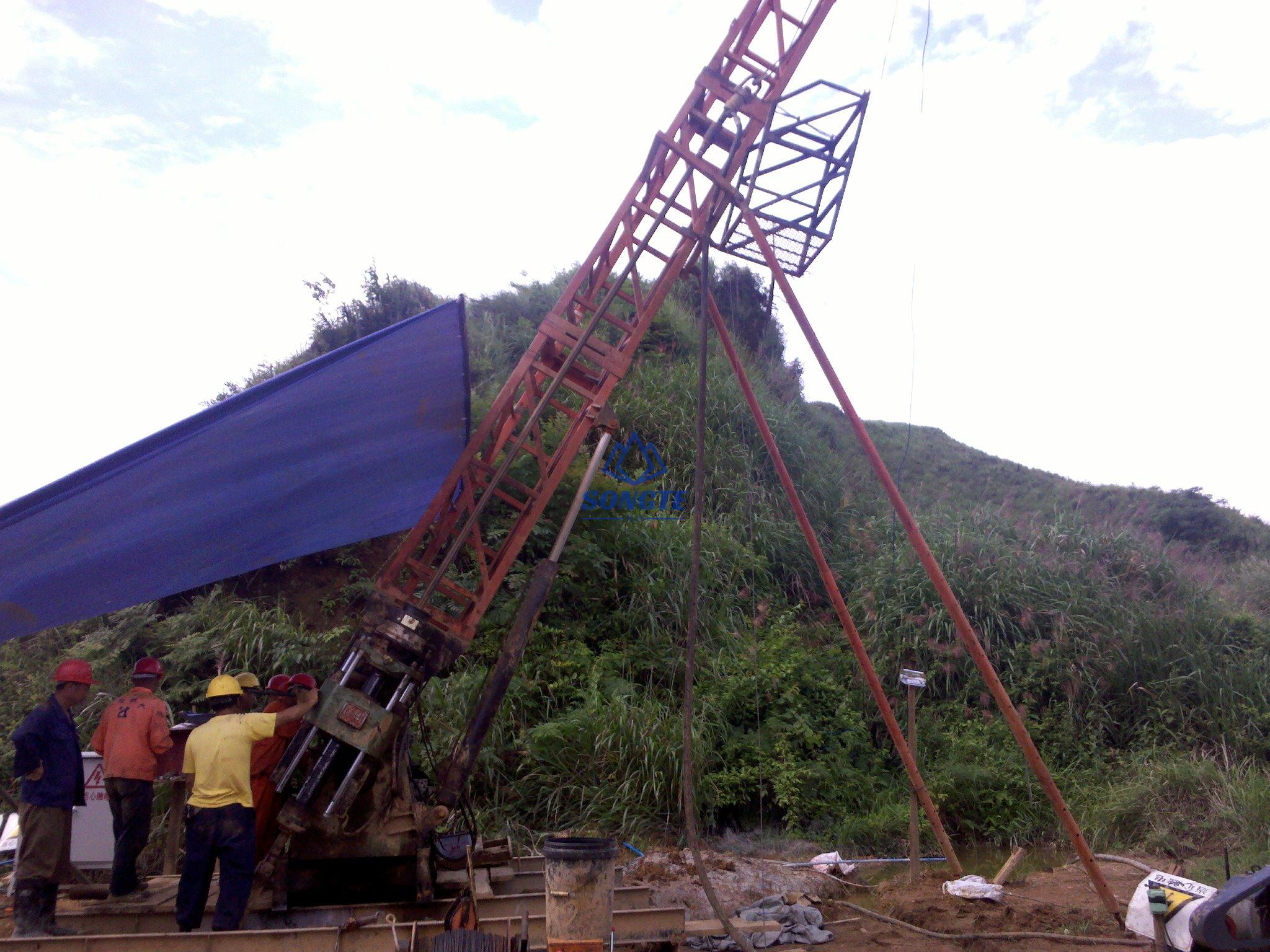

The tower body of the core Drill Rig is used as a lifting drill tool for drilling vertical as well as inclined holes. The range of adjusting angels (in clock-wise direction) for drilling inclined holes is 0°-90°.

Hydraulic Core Drilling Rigs Application: widely used in mineral exploration to explore for mineral resources such as gold, copper and diamonds, engineering geological exploration, geotechnical investigation to investigate the subsurface geology and soil conditions of a site, environmental sampling, etc. core drilling rigs are essential tools for a wide range of industries that require precise, deep drilling capabilities.

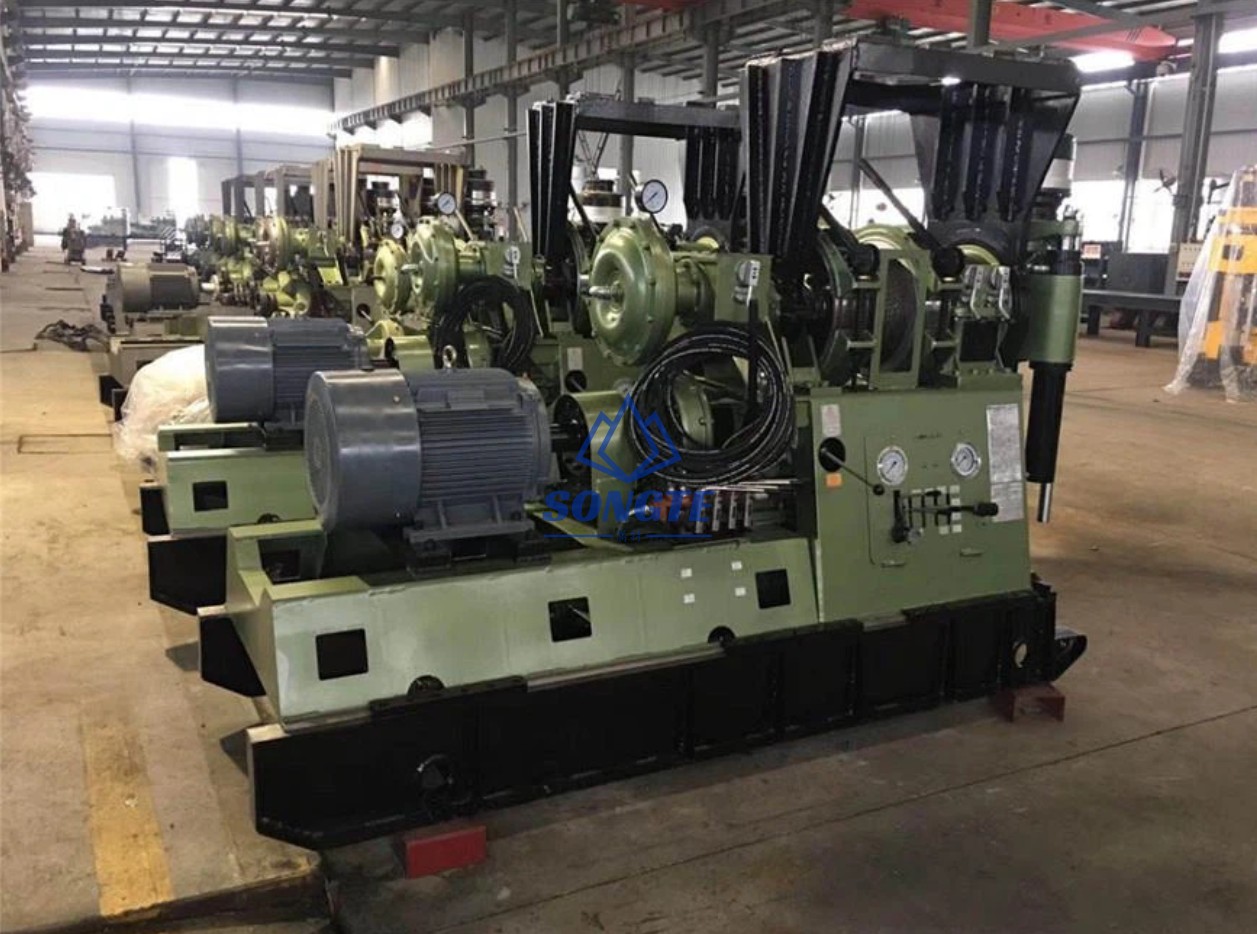

Spindle Type Hydraulic Core Drilling Rig Advantages:

1. This series spindle-type core drilling rig is integrated with the main machine and the drill tower.

2. This core drilling rig has fast rotary speed and a broad rotary range. It can produce large torque at low speed.

3. This core drilling machine is lightweight for easy transport and convenient disassembly.

4. With a compact structure and reasonable layout and exposed components, it is easier for maintenance and repair.

5. It is convenient for you to treat trouble with two reverse speeds.

6. With a low center of gravity, the rig is reliable and stable in high-speed drilling.

7. All the operation levers are concentrated, hence its operations are reliable and convenient.

8. Fitted with meters, the drilling rig can easily control the condition inside the hole.

9. The transmission part of the drill rig and the mud pump is separated. Therefore it is easier for the location arrangement with less space occupying.

10. The drill tower is pyramid-mast type. Being light in overall weight, the single component being light and limited in disassembly quantity, the tower is convenient for transportation and installation. The tower has its own crown block convenient for ground installation. When the rig is moved back during operation, the tower can be inclined to make up the moved-back distance so as to guarantee the central line between the centers of the hole and pulley.

11. The tower can be adjusted in a clock-wise direction for drilling inclined holes. The adjustment is convenient for making and wide in adjusting range. It is suitable for drilling large-angle holes.

SCS Series Diamond Core Drilling Rigs Technical Parameters:

Items	SCS-2T	SCS-4T	SCS-42T	SCS-44T
Drilling depth	300-550m	700-1050m	700-1150m	700-1450m
Max. torque	3247 N.m	2740 N.m	3300 N.m	3300 N.m
Spindle stroke	560mm	600mm	600mm	600mm
I.D of spindle	96mm	68mm	93mm	93mm
Max. lifting capacity of spindle	60 KN	80KN	80KN	120 KN
Max. feeding force of spindle	45KN	60KN	60KN	90KN
Max. Hoisting Force	30 KN	30KN	30KN	45KN
Diesel engine power	22kw	30kw	30kw	37kw
Drill tower height	8m	10m	10m	10m
Max. Load of drill tower	75 KN	100KN	10KN	100KN
Adjusted angles of drill tower	45°-90°	45°-90°	45º-90º	45°-90°
